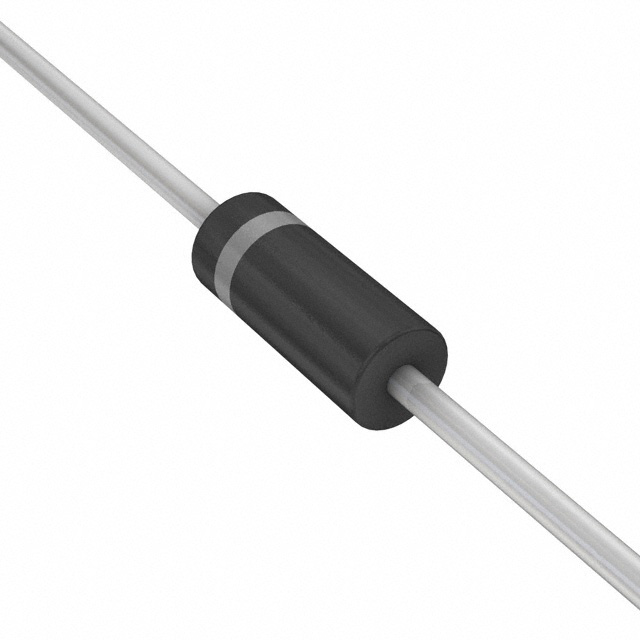

ON SEMICONDUCTOR 1N6373G TVS二极管, TVS, MOSORB系列, 单向, 5 V, 9.4 V, 轴向引线, 2 引脚
The is a MOSORB® unidirectional Zener Transient Voltage Suppressor TVS with void‐free transfer‐moulded thermosetting plastic case, all external surfaces are corrosion-resistant and leads are readily solderable finish. The MOSORB device is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low Zener impedance and fast response time.
- .
- Cathode indicated by polarity band
- .
- <1ns Typically response time
- .
- 20°C/W Junction-to-lead thermal resistance
- .
- 200A at 25°C Forward surge current
ESD sensitive device, take proper precaution while handling the device.
工作电压 5 V
无卤素状态 Halogen Free
击穿电压 6 V
电路数 1
针脚数 2
耗散功率 1500 W
钳位电压 9.4 V
最大反向电压（Vrrm） 5V
测试电流 1 mA
最大反向击穿电压 6 V
脉冲峰值功率 1500 W
最小反向击穿电压 6 V
击穿电压 6 V
工作温度Max 175 ℃
工作温度Min -65 ℃
安装方式 Through Hole
引脚数 2
封装 41A-04
长度 9.5 mm
封装 41A-04
工作温度 -65℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Each
制造应用 工业, Automation & Process Control, 医用, Industrial, 通用, Communications & Networking, 自动化与过程控制, 电源管理, Power Management, 通信与网络, 消费电子产品, Consumer Electronics, Medical
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1N6373G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
1N6373RL4G 安森美 | 完全替代 | 1N6373G和1N6373RL4G的区别 |
MPTE-5RL4G 安森美 | 类似代替 | 1N6373G和MPTE-5RL4G的区别 |
MPTE-005G 安森美 | 类似代替 | 1N6373G和MPTE-005G的区别 |
