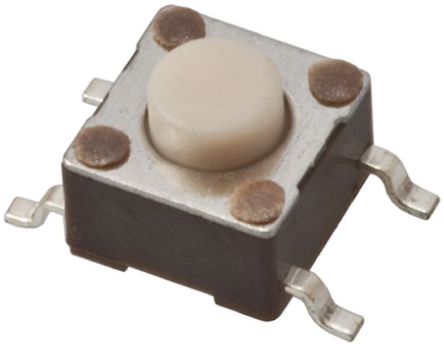

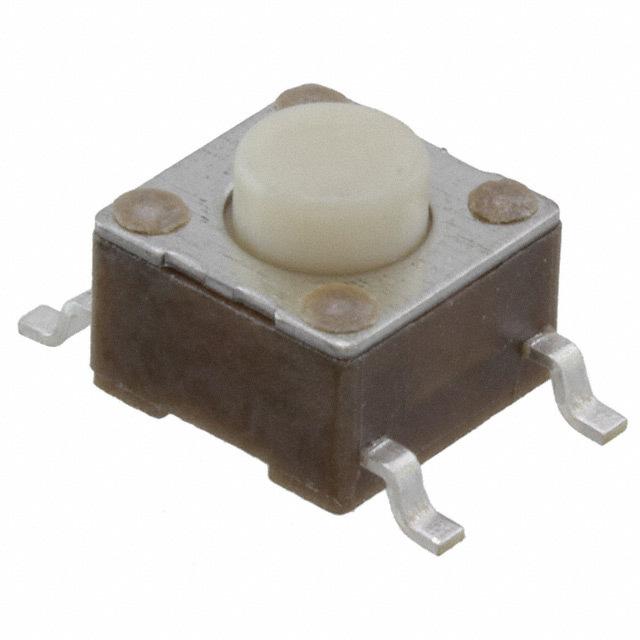

1571563-4

FSMJSMA 系列 白色 单刀单掷 垂直 圆形 开/关 瞬时 按键 开关

FSM 系列轻触式

TE Connectivity 的专业系列轻触式开关。FSM 系列开关均适合与移动设备一起使用。

单极常开轻触式开关，提供 THT、SMD 和直角安装

SMD 类型适合浸洗

### 触控

立创商城:
1571563-4

欧时:
TE Connectivity 按钮式 轻触式开关 1571563-4, 单刀单掷 - 常开, 50 mA @ 24 V 直流 1.41mm

艾睿:

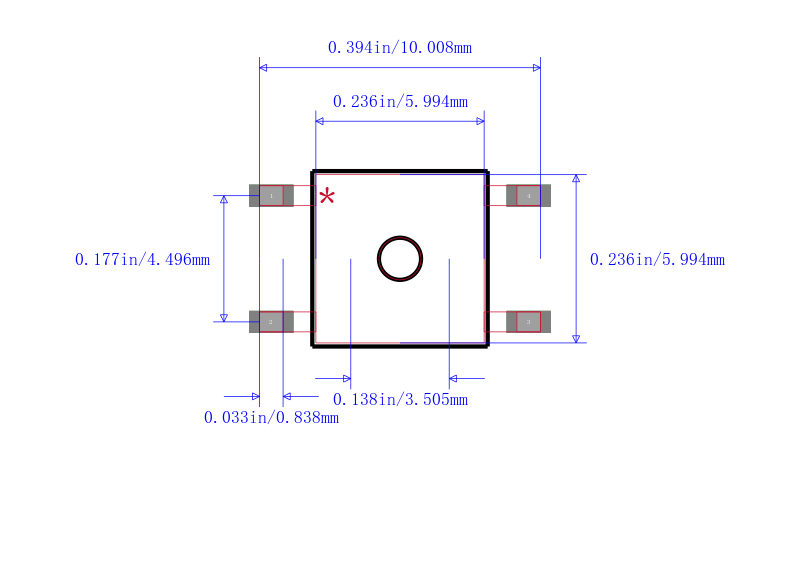

This micro-miniature 1571563-4 tactile switch from TE Connectivity makes it possible to turn on or off your circuit by the use of pressure. This device has a maximum current rating of 0.05 A @ 24VDC. It has a SPST configuration. This tactile switch has an operating temperature range of -20 °C to 85 °C. The 1571563-4 tactile switch has a gull wing termination style. This round button actuator is 1.41 mm long. The maximum DC voltage rating is 24 VDC. This product is 6 mm long, 5.23 mm tall and 10 mm deep.

安富利:
Switch Tactile OFF ON SPST Round Button Gull Wing 0.05A 24VDC 2.6N SMD T/R

Chip1Stop:
Switch Tactile OFF ON SPST Round Button Gull Wing 0.05A 24VDC 2.6N SMD T/R

Verical:
Switch Tactile OFF ON SPST Round Button Gull Wing 0.05A 24VDC 2.6N SMD T/R

MASTER:
Tactile Switch - FSMJSM Series - Top Actuated - SMD - Round Button - 260 gf - 50mA at 24VDC.

Powell:
Tactile Switches

Online Components:
MICRO MINIATURE PUSHBUTTON SWITCH FSM JSM

Electro Sonic:
Tactile Switch - FSMJSM Series - Top Actuated - SMD - Round Button - 260 gf - 50mA at 24VDC.

Win Source:
Tactile Switch SPST-NO Top Actuated Surface Mount
