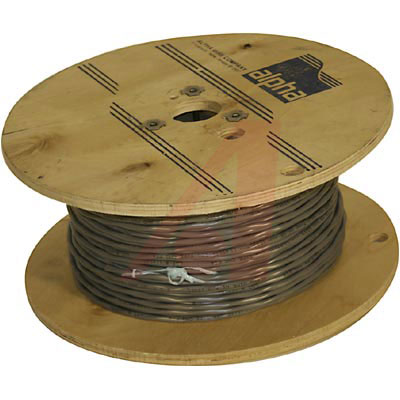

ALPHA WIRE 1895C SL002 Multiconductor Unshielded Cable, Control, Slate, 2Conductor, 20AWG, 0.51mm², 500Ft, 152.4m
The is a 2-core Unshielded Cable with tinned copper conductor, PVC insulator and a slate PVC jacket.
- .
- 17.5lbs Maximum pull tension
- .
- 0.19µH/ft Nominal inductance
- .
- 10.2R/1000ft at 20°C Nominal conductor DC resistance DCR
得捷:
CABLE 2COND 20AWG SLATE 500"
贸泽:
Multi-Conductor Cables 20AWG 2C UNSHLD 500ft SPOOL SLATE
Allied Electronics:
Multiconductor Cable, Unshielded; 2; 20AWG; 7 x 28; 0.18 in.; 0.016 in.; PVC
Newark:
# ALPHA WIRE 1895C SL002 Multiconductor Unshielded Cable, Control, Slate, 2 Conductor, 20 AWG, 0.51 mm², 500 ft, 152.4 m
线规 20 AWG
额定电压DC 300 V
屏蔽 No
芯数 2
工作温度Max 75 ℃
额定电压 300 V
长度 152.4 m
颜色 Red
绝缘材质 PVC
工作温度 -20℃ ~ 80℃
导体材质 Tinned Copper
外壳材质 PVC
产品生命周期 Active
包装方式 Bulk
制造应用 Security, Communications & Networking, Audio, Portable Devices, Sensing & Instrumentation, Consumer Electronics, Automation & Process Control, Computers & Computer Peripherals
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
