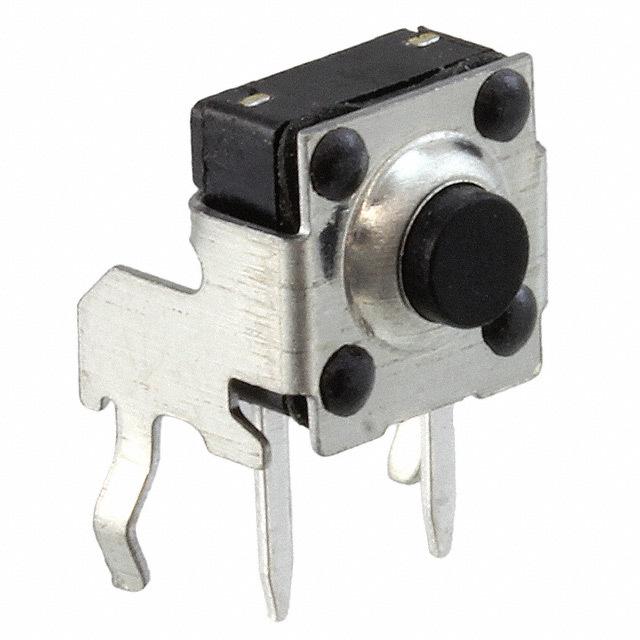

触觉开关 R/A SEALED TACT SWITCH
侧面触动 触摸 SPST-NO 通孔，直角
贸泽:
触觉开关 R/A SEALED TACT SWITCH
艾睿:
Switch Tactile OFF ON SPST Round Button PC Pins 0.05A 24VDC 1000000Cycles 1.57N Bracket Mount/Through Hole Loose
安富利:
Switch Tactile OFF ON SPST Round Button PC Pins 0.05A 24V 1000000Cycles 1.57N Thru-Hole Bulk
Chip1Stop:
Switch Tactile OFF ON SPST Round Button PC Pins 0.05A 24VDC 1000000Cycles 1.57N Bracket Mount/Through Hole Loose Piece
Verical:
Switch Tactile OFF ON SPST Round Button PC Pins 0.05A 24VDC 1000000Cycles 1.57N Bracket Mount/Through Hole Loose
Powell:
Tactile Switches
触点电镀 Silver
额定电压DC 24 V
排数 1
额定电流Max 0.05A @24VDC
工作温度Max 85 ℃
工作温度Min -35 ℃
额定电压DC Max 24 V
接触电阻Max 100 mΩ
安装方式 Through Hole
引脚数 2
封装 DIP
长度 6.9 mm
封装 DIP
颜色 Black
触点材质 Stainless Steel
工作温度 -35℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
