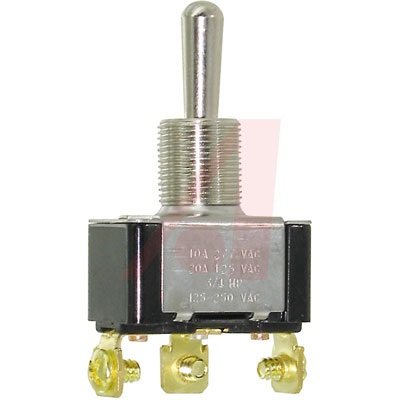

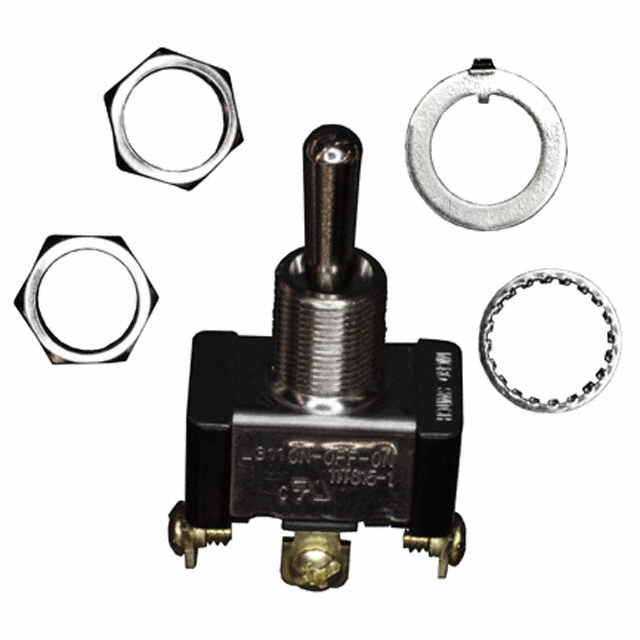

11TS15-1

Toggle Switch, 20A @ 125VAC, 10A @ 277VAC, SPDT, Screw Terminals

The TS series MICRO SWITCH™ general purpose Toggle Switch may be used anywhere manual operation is desired. It is an entry-level solution for applications that do not require a sealed toggle switch. Special ON-ON-ON circuitry can also be furnished. It features broad circuitry and action availability considering 2 or 3-position options, momentary and maintained actions and 1 and 2-pole circuitry. It is available with solder, screw or quick-connect termination styles. It is suitable for applications without harsh environmental conditions or where third-party seal rating is not required.

.

2 or 3-position, Maintained and momentary action

.

Electrical connections as screw, solder and quick connect spade

.

Optional step-case design provides added space between terminals to prevent shorting

.

Lever-to-bushing seal

DO NOT USE these products as safety or emergency stop devices or in any other application where failure of the product could result in personal injury.
