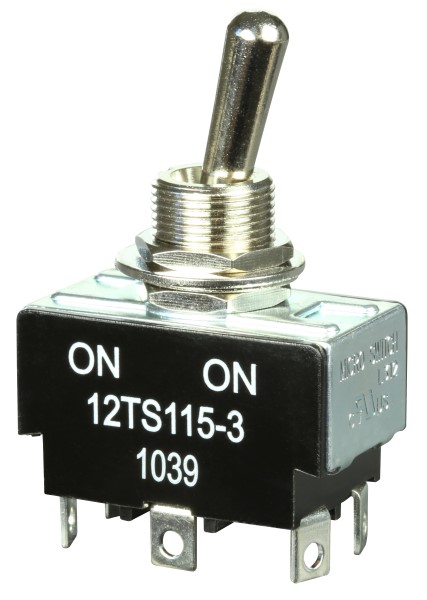

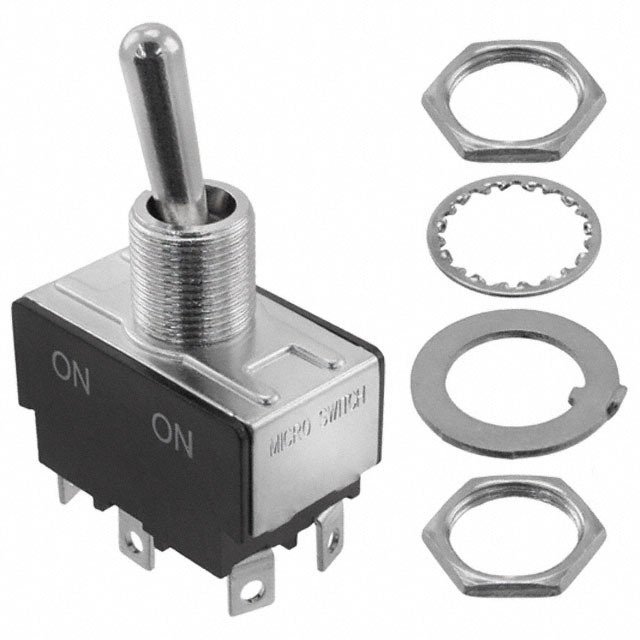

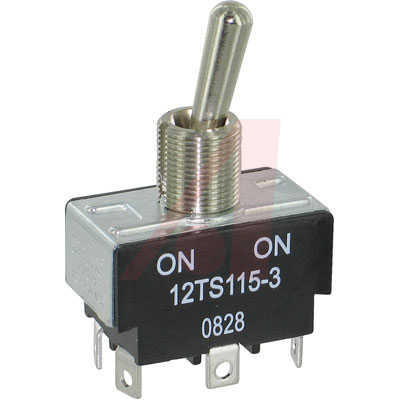

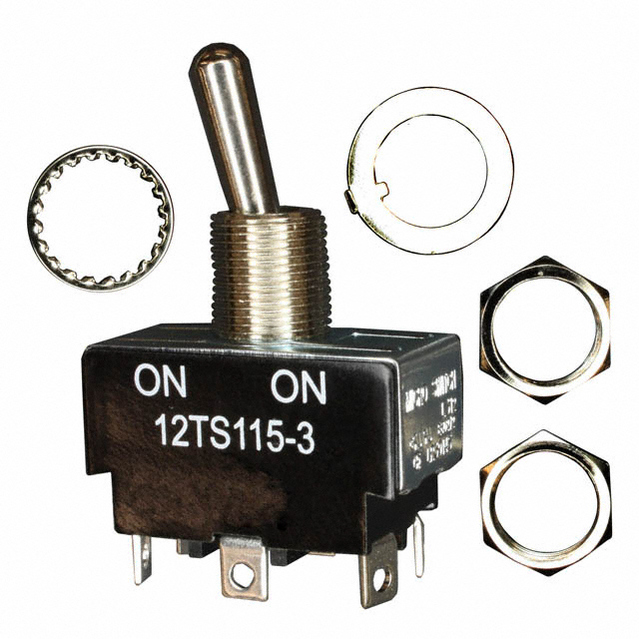

12TS115-3

拨动开关 DPDT ON-ON Solder Term

May be used anywhere manual operation is desired. MICRO SWITCH™ TS Series switches have 2- or 3-position, momentary and maintained action switches with 1- and 2-pole circuitry. Switches have solder hole terminations.

贸泽:
拨动开关 DPDT ON-ON Solder Term

艾睿:
The general purpose 12TS115-3 toggle switch from Honeywell allows you to control the status of your project. This device has a maximum current rating of 20 A @ 125VAC. It has a DPDT configuration. This toggle switch has a minimum operating temperature of -54 °C and a maximum of 71 °C. The 12TS115-3 toggle switch has a solder termination style. This product is 33.27 mm long, 55.42 mm tall and 19.05 mm deep. The maximum AC voltage rating is 277 VAC.

Allied Electronics:
Toggle Switch, 20 A @ 125 VAC, 10 A @ 277 VAC, DPDT, Solder Terminals

Chip1Stop:
Switch Toggle ON ON DPDT Round Lever Solder 20A 277VAC 745.7VA Panel Mount with Threads

Verical:
Switch Toggle ON ON DPDT Round Lever Solder 20A 277VAC 559.27VA Panel Mount with Threads

Newark:
# HONEYWELL  12TS115-3  Toggle Switch, DPST, Non Illuminated, On-None-On, TS Series, Panel, 20 A

MASTER:
MICRO SWITCH™ Toggle Switches: TS Series, Double Pole Double Throw DPDT 2 Position On - On, Solder Terminals, Bright Nickel Bushing and Standard Lever

Online Components:
MICRO SWITCH™ Toggle Switches: TS Series, Double Pole Double Throw DPDT 2 Position On - On, Solder Terminals, Bright Nickel ...

Electro Sonic:
MICRO SWITCH™ Toggle Switches: TS Series, Double Pole Double Throw DPDT 2 Position On - On, Solder Terminals, Bright Nickel ...
