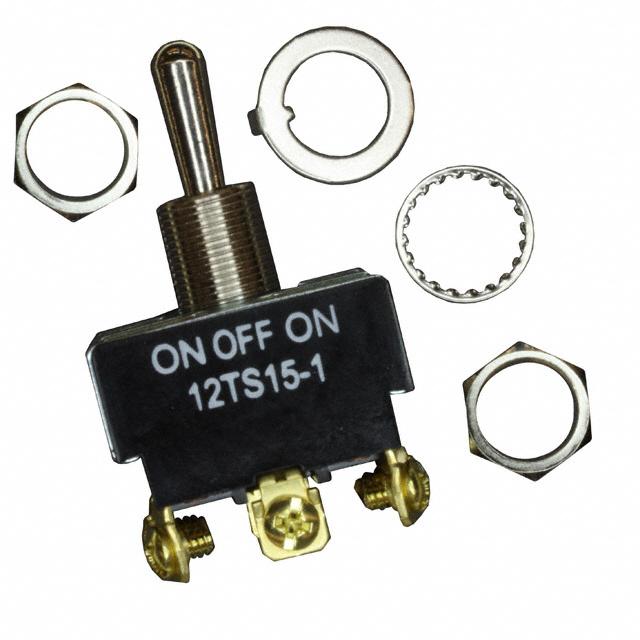

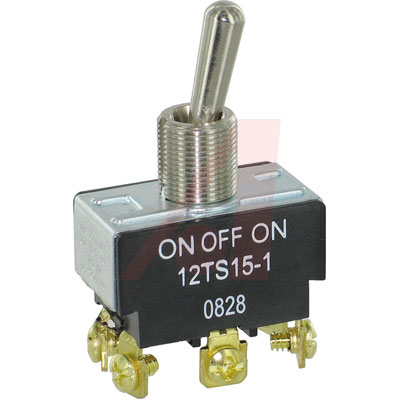

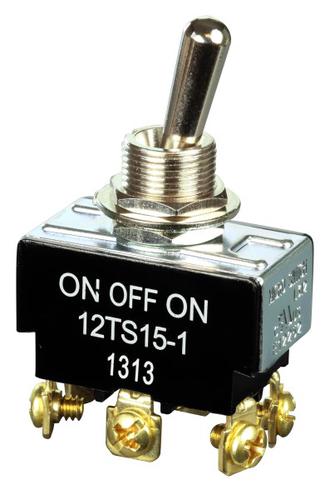

HONEYWELL 12TS15-1 拨动开关, TS系列, 不发光, DPDT, 开-关-开, 面板, 15 A
The is a double-pole double-throw DPDT Toggle Switch with standard lever and screw terminals. The MICRO SWITCH™ TS series switch comes with bright nickel lever and 15/32-inch bushing mounting. It is an entry-level solution for applications that do not require a sealed toggle switch. Special on-on-on circuitry can also be furnished.
- .
- 3-position action
- .
- -54 to 71°C Operating temperature range
Do not use this product as safety or emergency stop device or in any other application where failure of the product could result in personal injury.
额定电流 20 A
触点类型 DPDT
额定电流Max 20A @125VAC
工作温度Max 71 ℃
工作温度Min -54 ℃
额定电压AC Max 277 V
安装方式 Panel
封装 125
长度 33.27 mm
宽度 19.0 mm
高度 56.9 mm
封装 125
触点材质 Silver Cadmium Oxide
工作温度 -54℃ ~ 71℃
产品生命周期 Active
包装方式 Bulk
制造应用 Automation & Process Control, 医用, 自动化与过程控制, Sensing & Instrumentation, 军用与航空, 传感与仪器, Aerospace, Defence, Military, 国防, Test & Measurement, 工业, 测试与测量, Industrial, 国防, 军用与航空, Agriculture, Medical, 农业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
ECCN代码 EAR99
HTS代码 8536509065
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
12TS15-1 Honeywell 霍尼韦尔 | 当前型号 | 当前型号 |
8820K16 库柏 | 类似代替 | 12TS15-1和8820K16的区别 |
2GM54-73 嘉灵科技 | 功能相似 | 12TS15-1和2GM54-73的区别 |
