1NT1-3F

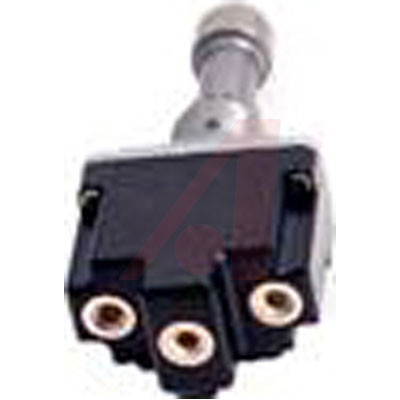

1NT1-3F图片1
1NT1-3F图片2
1NT1-3F图片3
1NT1-3F图片4
1NT1-3F图片5
1NT1-3F图片6
1NT1-3F图片7
1NT1-3F概述

Honeywell Hour Meters: LM Series Microcontrol Unit Digital LCD Hour Meter, Blue Backlight, 7mm Display, Diamond Shape with Black Bezel, Four 1/4in Blade Terminals Positive, Negative, Blue Backlight, Enable, 9VAC/dc to 64VAC/dc, Honeywell Logo, Box Qty: 24Individually Boxed, 1 Wire Per Terminal, No Fastenings Included

"s 61/62 NT Series toggle switches simplify installation and enhance panel appearance while providing a broad range of options for circuitry, sealing, size and style. These rugged, cost-effective switches were originally designed to eliminate the need for behind-panel hardware, to provide uniform panel height, and to provide a unique, universal cover seal, all while providing reliable performance.

NT Series toggle switches from Honeywell feature:

* A raised panel stand-off option for consistent panel height

* An Easy-Start bushing to ensure proper alignment

* A panel-to-cover O-ring seal for increased protection

* Quality at a competitive price

1NT1-3F中文资料参数规格
技术参数

额定电压DC 250 V

额定电压AC 277 V

额定电流 15 A

触点类型 SPDT

针脚数 2

额定电流Max 20A @28VDC

工作温度Max 71 ℃

工作温度Min -40 ℃

额定电压 115 VAC

额定电压DC Max 250 V

额定电压AC Max 277 V

封装参数

安装方式 Panel

外形尺寸

长度 28.6 mm

高度 68.07 mm

物理参数

触点材质 Silver Cadmium Oxide

工作温度 -40℃ ~ 71℃

其他

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536509065

数据手册

在线购买1NT1-3F
型号: 1NT1-3F
描述:Honeywell Hour Meters: LM Series Microcontrol Unit Digital LCD Hour Meter, Blue Backlight, 7mm Display, Diamond Shape with Black Bezel, Four 1/4in Blade Terminals Positive, Negative, Blue Backlight, Enable, 9VAC/dc to 64VAC/dc, Honeywell Logo, Box Qty: 24Individually Boxed, 1 Wire Per Terminal, No Fastenings Included
