1-102536-1

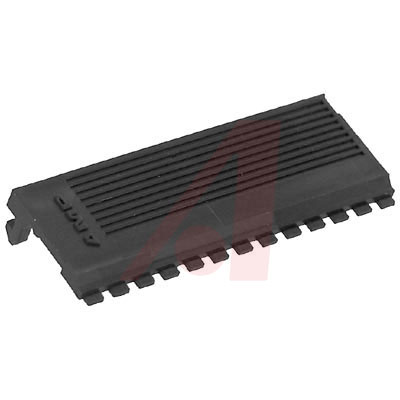

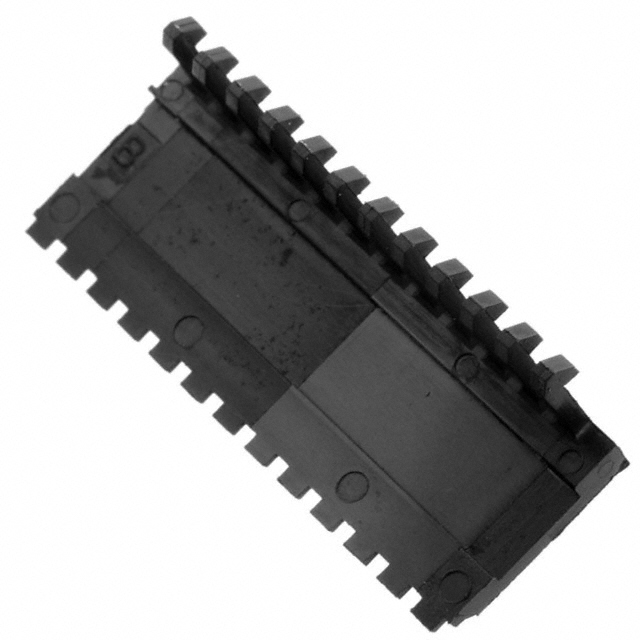

Connector Accessories 26POS 2.54mm Receptacle Cover Thermoplastic Black

0.100 & 0.150 Centerline Receptacle Assemblies

Housings are preloaded with standard pressure contacts on0.100" × 0.100" centers. The contacts are insulation displacement for termination of discrete wires or ribbon cable with conductors separated. Crimp, snap-in contacts can be used interchangeably with the insulation displacement contacts. Connector covers are sold separately.

.

* Specifications. Housing:** Black thermoplastic, flame retardant. ** Contacts:** Copper alloy; duplex plated 0.000030 μ" gold on the contact area, 0.000050 μ" min. tin-lead on termination area, with entire contact underplated 0.000050 μ" nickel. Rating: 3 amperes for single contact. UL recognized, CSA certified. ** Operating Temperature:** -65°C to +105°C. Mate with posts 0.222"-0.273" in length. ** Covers.** Low profile for double row MT connectors. ** Material:** Black thermoplastic, flame retardant.

For use with the front covers listed.
