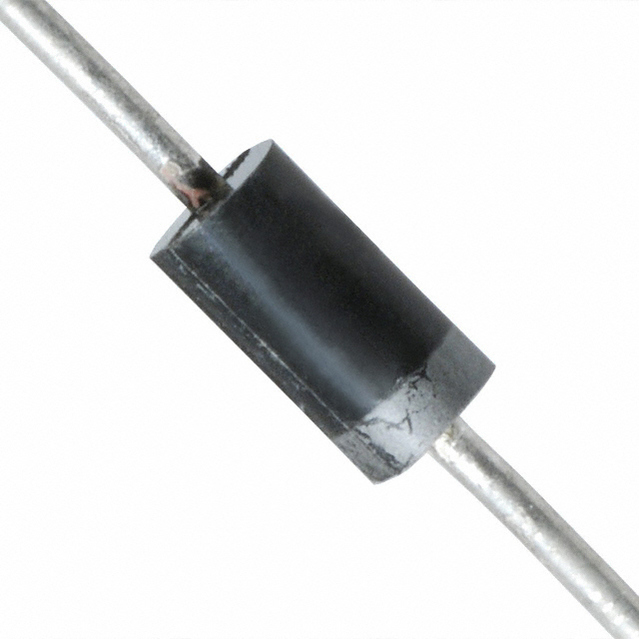

MICRO COMMERCIAL COMPONENTS 1N4002-TP 二极管, 标准恢复型, 1A, 100V, DO-41
标准 100 V 1A 通孔 DO-41
得捷:
DIODE GEN PURP 100V 1A DO41
立创商城:
100V 1A 1V@1A
e络盟:

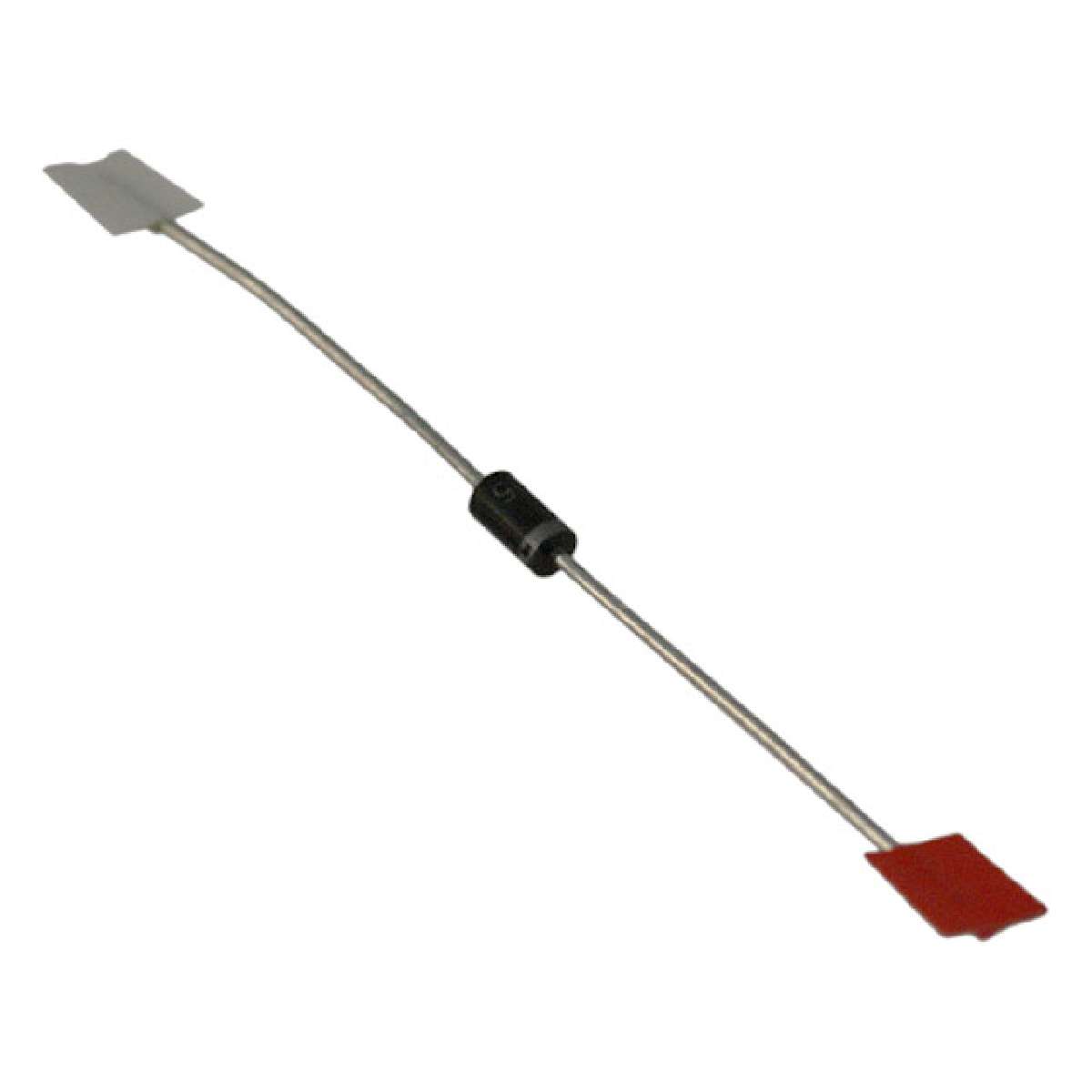

标准恢复, 1A, 100V, DO-41, 整卷
艾睿:
Converting from AC to DC is simple when using a switching diode 1N4002-TP rectifier from Micro Commercial Components. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It is made in a single configuration. This rectifier has an operating temperature range of -55 °C to 125 °C. Its peak non-repetitive surge current is 30 A, while its maximum continuous forward current is 1@Ta=75C A.
Chip1Stop:
Diode Switching 100V 1A 2-Pin DO-41 T/R
Verical:
Rectifier Diode Switching 100V 1A 2000ns 2-Pin DO-41 T/R
Newark:
# MICRO COMMERCIAL COMPONENTS 1N4002-TP Standard Recovery Diode, 100 V, 1 A, Single, 1.1 V, 2 µs, 30 A
Win Source:
DIODE GEN PURP 100V 1A DO41
额定电压DC 100 V
额定电流 1.00 A
电容 15.0 pF
输出电流 ≤1.00 A
针脚数 2
正向电压 1.1V @1A
极性 Standard
热阻 25℃/W RθJL
反向恢复时间 2 µs
正向电流 1 A
最大正向浪涌电流(Ifsm) 30 A
正向电压Max 1.1 V
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Through Hole
引脚数 2
封装 DO-41
宽度 2.7 mm
封装 DO-41
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1N4002-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
1N4002 美微科 | 完全替代 | 1N4002-TP和1N4002的区别 |
1N4002RLG 安森美 | 功能相似 | 1N4002-TP和1N4002RLG的区别 |
1N4002-T 美台 | 功能相似 | 1N4002-TP和1N4002-T的区别 |
