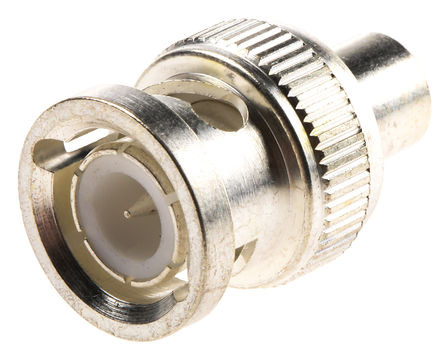

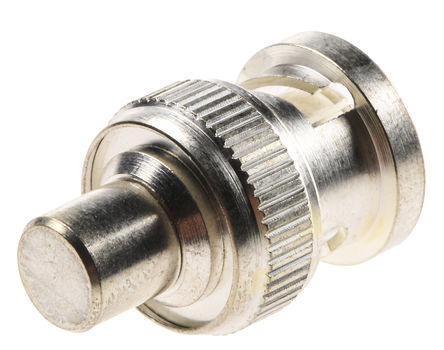

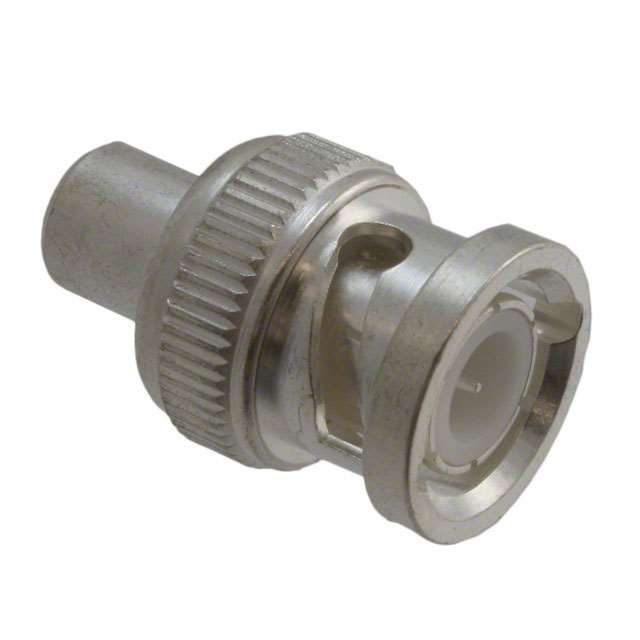

TE Connectivity 75 Ohm BNC Connector - Plug Termination75 Ohm BNC plug termination connector with a PTFE dielectric, straight gold plated brass body and gold plated contact.### TE Connectivity BNC 射频同轴连接器### TE Connectivity 镀镍 ZDCTE Connectivity ZDC 系列,通过使用精确压铸元件和热塑电解质为商业应用提供优质且价廉物美的解决方案。 提供 BNC 接口和各种型号。该系列经济、可靠。连接器接口与 MIL-C-39012 和 MIL STD348A 的要求完全兼容,因此可与按这些规格制造的产品完全匹配。TE Connectivity ZDC 系列包含各种电缆安装插头和插孔、隔板及印刷电路板插座,为注意成本的应用环境提供了全面的解决方案选择。 压接连接器采用标准六角形压接工具和模组,避免了昂贵的再加工过程。额定阻抗 | 50Ω 和 75Ω ---|--- 工作电压 | 500Vrms 触点电阻 | 最大 1.5mΩ 绝缘电阻(初始) | 最小 5000MΩ 介电耐冲击电压 | 1500Vrms(海平面) 频率范围 | 0 到 4GHz50O 0-2GHz75O VSWR | 0.2GHz | 直向,最大 1.15 2.6GHz | 直向,最大 1.30 耐久性(次数) | 50 温度范围 | -55°C 至 +85°C 主体材料 | 锌 主体镀层 | 镍 公触点材料 | 黄铜 母触点材料 | 黄铜 触点电镀 | 金 绝缘 | Delrin 或聚乙烯 兼容性 --- 电缆类型 | 使用压接工具 RG174, RG58 | 453-870 RG59 | 453-870
75 Ω BNC - 插头端接
75 Ω BNC 插头端接连接器,带 PTFE 电介质、直向镀金黄铜主体和镀金触点。
### TE Connectivity BNC 射频同轴连接器
欧时:
BNC plug termination 75ohm 1GHz 0.5W
得捷:
CONN TERMINATOR PLUG BNC 75OHM
e络盟:
射频/同轴连接器, BNC同轴, 直型插头, 75 ohm, 黄铜
艾睿:
Do you have coaxial cables? This bnc 1-1337470-0 RF connector manufactured from TE Connectivity is a must for you, it offers low transmission line impedance. This connector&s;s body is plated in gold. It has a straight body orientation. It has a plug type gender. It has an operating frequency of 0 to 1G Hz. The component will be shipped in tray format. This product is 22.5 mm long with a diameter of 14.5 mm. This rf connector has an operating temperature of -65 to 165 °C.
Allied Electronics:
75Ohms Straight BNC RF Terminator, Plug, Cable Mount, 0 - 1GHz
安富利:
Conn BNC PL 0Hz to 1GHz 75Ohm ST Cable Mount Gold Tray
Chip1Stop:
Conn BNC PL 0Hz to 1GHz 75Ohm ST Cable Mount Gold Tray
Verical:
Conn BNC 0Hz to 1GHz 75Ohm ST Cable Mount PL Gold Box/Tray
MASTER:
BNC PLUG TERMINATION 75 OHM
Powell:
BNC RF Connectors
Online Components:
BNC Plg Term 75Ohm Silver Pltd
Electro Sonic:
BNC Plg Term 75Ohm Silver Pltd
极性 Male
触点电镀 Gold
绝缘电阻 5.00 GΩ
拔插次数 500
工作温度Max 165 ℃
工作温度Min -65 ℃
安装方式 Panel
长度 22.5 mm
触点材质 Brass
材质 Brass
介质材料 Teflon
绝缘材质 Teflon
工作温度 -65℃ ~ 165℃
产品生命周期 Active
包装方式 Tray
制造应用 工业, Industrial, 射频通信, Signal, RF Communications
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536694010
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1-1337470-0 TE Connectivity 泰科 | 当前型号 | 当前型号 |
1-1337463-0 Greenpar | 功能相似 | 1-1337470-0和1-1337463-0的区别 |
