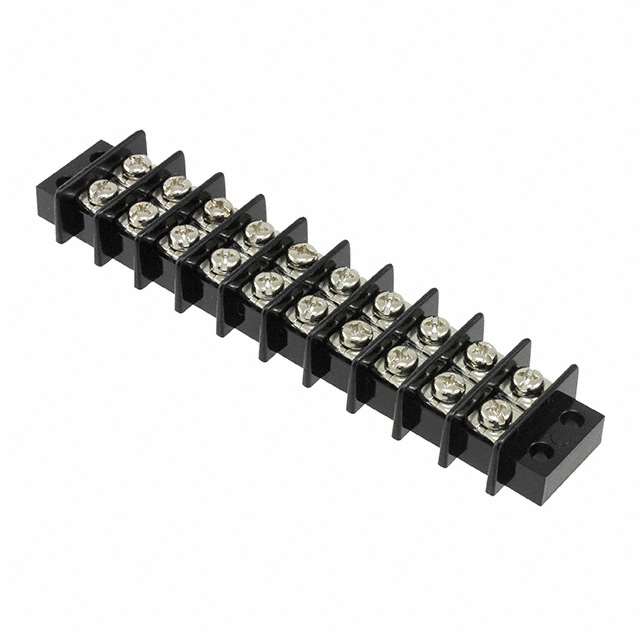

1-1546671-0

栅栏式接线端子 10P VERT BARRER STRP 11.10MM 25A BLACK

电路 0.437"（11.10mm） 隔板接线座 螺钉

得捷:
CONN BARRIER STRP 10CIRC 0.437"

贸泽:
栅栏式接线端子 10P VERT BARRER STRP 11.10MM 25A BLACK

艾睿:
Connect test equipment together with other components by using this barrier strip 1-1546671-0 PCB terminal block from TE Connectivity. Its pitch is 11.1 mm. This is a 2-row connector. It has a straight body orientation. It has a maximum voltage rating of 300 VAC. 1-1546671-0 is housed in thermoplastic. This device has a maximum current rating of 25 A/contact. This product is 130 mm long, 13.99 mm tall and 27.94 mm deep. This quick disconnect terminal has an operating temperature of -40 to 120 °C. It uses the screw termination method. Its wire is 14-22 AWG.

Allied Electronics:
Barrier Strip, Dual Barrier, Flat, 11.10mm Centerline, Veritical Mount Angle 1-

安富利:
Conn Barrier Strip 20 POS 11.1mm Screw ST Panel Mount 25A/Contact

Chip1Stop:
Conn Barrier Strip 20 POS 11.1mm Screw ST Panel Mount 25A/Contact

Verical:
Conn Barrier Strip 10 POS 11.1mm Panel Mount 25A/Contact Carton

Newark:
# AMP - TE CONNECTIVITY  1-1546671-0  10P.437 DR BARRIER,W/WIR CLMP New

MASTER:
DOUBLE ROW BARRIER STRIP W/ WIRE CLAMP, .437 SPACING

Powell:
Barrier Strips, Barrier Strip Sockets

Online Components:
10P.437" DR BARRIER,W/WIR CLMP

Electro Sonic:
10P.437" DR BARRIER,W/WIR CLMP
