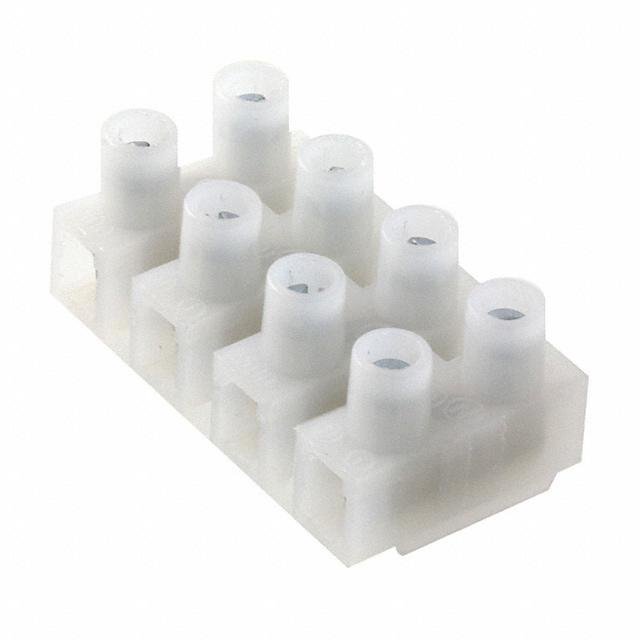

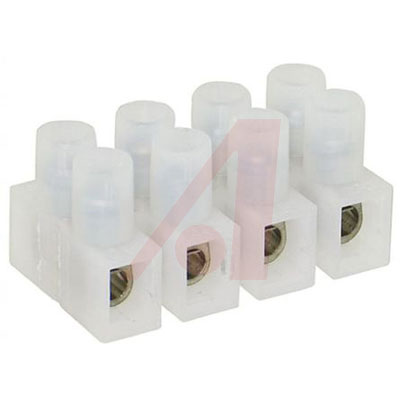

1776296-4

Buchanan; Conn; Term Strip; Barrier; 4Pole; 10.0mmPitch; DBLRow; 22-10; 30A; 250V

TSB5000431DS=EUROPA T-BLK,10MM

Product Highlights

Terminal Block

10.00 mm Centerline

Number of Circuits = 4

Wire Range = 0.30-6.00² [22-10] mm [AWG]

With Wire Protection

得捷:
CONN TERM STRIP 4CIRC 0.394"

艾睿:
Know that you will have strong connections between circuits when you use TE Connectivity&s;s europa terminal blocks 1776296-4 PCB terminal block. This F connector&s;s 8 contacts that are made out of brass/steel and plated with tin/zinc chromate. It has a maximum voltage rating of 250 VAC. Its pitch is 10 mm. It has a female type gender. This is a 2-row connector. This device has a maximum current rating of 30 A/contact. 1776296-4 is housed in polyamide. Its wire is 10-22 AWG. This product is 36.6 mm long, 16 mm tall and 20.5 mm deep. This quick disconnect terminal has an operating temperature of -35 to 100 °C. It uses the screw termination method.

Allied Electronics:
Buchanan; Conn; Term Strip; Barrier; 4Pole; 10.0mmPitch; DBLRow; 22-10; 30A; 250V

安富利:
Conn Europa Terminal Blocks F 8 POS 10mm Screw Cable Mount 30A/Contact

Verical:
Conn Europa Terminal Block F 8 POS 10mm Screw Cable Mount 30A/Contact Package

MASTER:
EUROPA TERMINAL BLOCK W/WIRE PROTECTOR MOUNTING HOLES DIA 3.1, 10mm PITCH

Powell:
Europa Terminal Blocks

Online Components:
TSB5000431DS=EUROPA T-BLK,10MM

Electro Sonic:
TSB5000431DS=EUROPA T-BLK,10MM
