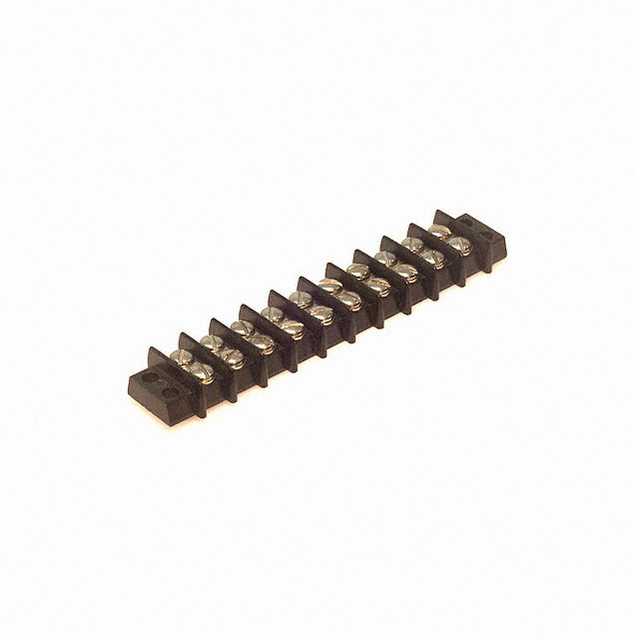

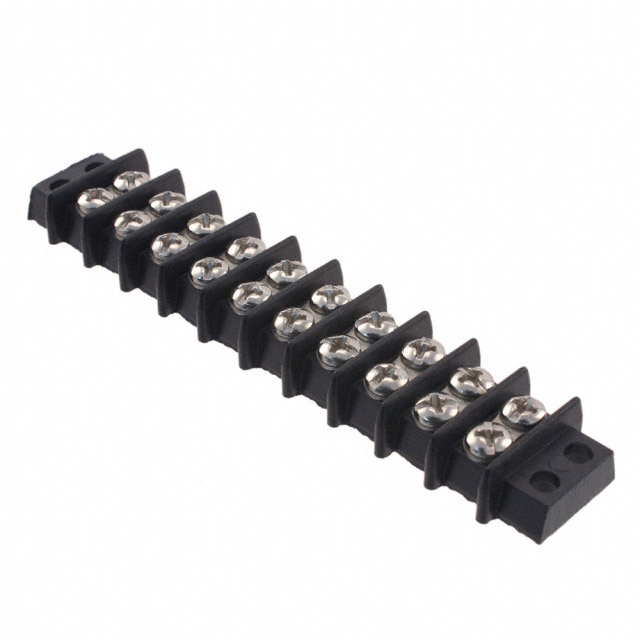

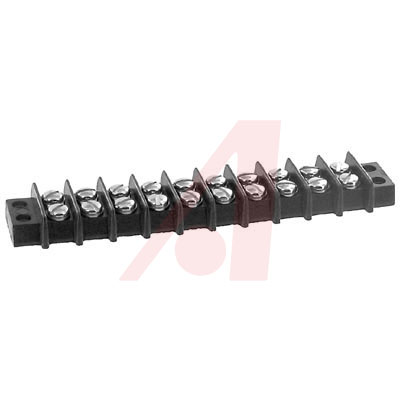

CINCH 10-140 面板安装阻隔接线端子, 10 路, 2排, 250 V, 15 A, 16 AWG
The is a 10-way 2-row open bottom Barrier Terminal Block with standard screw and 16AWG maximum wire size. This 140 series terminal block has black general purpose phenolic moulded monoblock insulation, nickel-plated brass eyelet, nickel over copper flash steel screw, electro-tin-plated brass solder terminal and NEMA grade XPC marker strip. Interposing barriers between terminals yield higher electrical ratings and provide additional protection against frayed wire shorting.
触点数 20
线规 16 AWG
触点电镀 Nickel
额定电流 15 A
排数 2
电路数 10
易燃性等级 UL 94 V-1
针脚数 10
安装角度 180 °
额定电流Max 15 A
工作温度Max 148 ℃
工作温度Min -48 ℃
额定电压Max 250 VAC
额定电压 250 V
安装方式 Through Hole
引脚间距 9.53 mm
长度 104.78 mm
宽度 112 mm
高度 28.58 mm
引脚间距 9.53 mm
外壳颜色 Black
颜色 Black
触点材质 Brass
工作温度 -48℃ ~ 148℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Bulk
制造应用 商业, Commercial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
HTS代码 8536694050
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
10-140 Cinch Connectivity Solutions | 当前型号 | 当前型号 |
1-1546306-0 泰科 | 功能相似 | 10-140和1-1546306-0的区别 |
MC24317 Multicomp | 功能相似 | 10-140和MC24317的区别 |
600-GP-10-PSB Marathon | 功能相似 | 10-140和600-GP-10-PSB的区别 |
