1-1546670-4

11.1mm 每排P数:28 排数:2

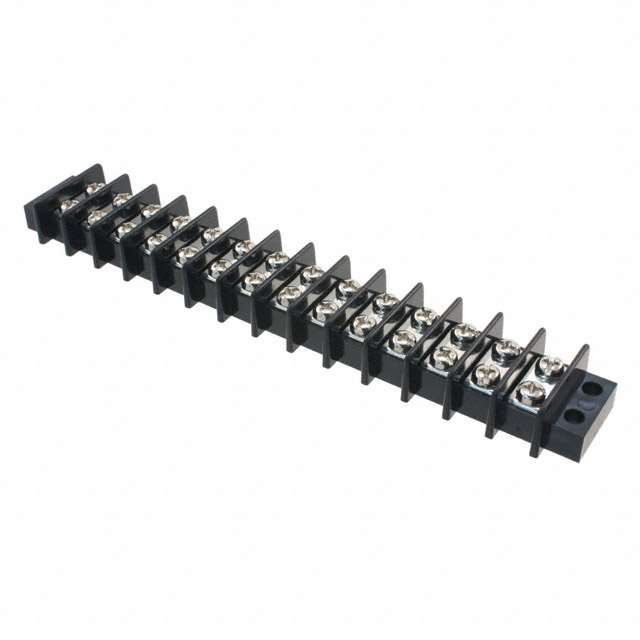

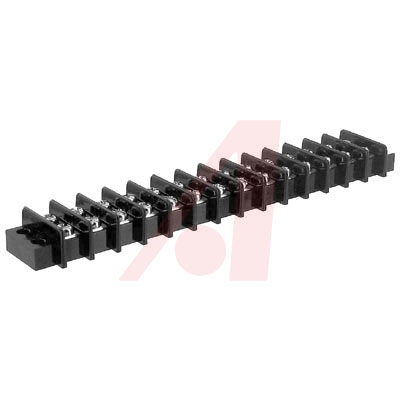

Terminal Block, Barrier Strips, 30 A Current Rating, 3.810 " Length

Double-row, dual barrier strips for wire-to-wire applications. These parts also allow end users to complete the wiring to a separate screw without disturbing the factory wiring. Increased current-carrying capability

**

Material. Insulator Body:

.

* UL 94V-0 thermoplastic, black. ** Terminal:** Brass, tin plated. ** Screw:** #6-32 Steel, nickel plated; M4.0 Steel, nickel plated 14.3 mm.

** Features

**

* Closed Bottom Design Allows for Mounting Direct to Sheet Metal Panel

* Molded to Length

* Wire-to-Wire Termination

* Available with Either Binding Head Screws or Wire Clamp

* Accessories Such as Quick-Connect Tabs and Jumpers Available

** Electrical**

* Current Rating: 25 A, 300 VAC

* Wire Range: 22-14 AWG

* Withstanding Voltage: 2000 VAC Min.

* Insulation Resistance: >5000 MΩ @ 500 VDC

* Operating Temperature: –40°F to +221°F –40°C to +105°C
