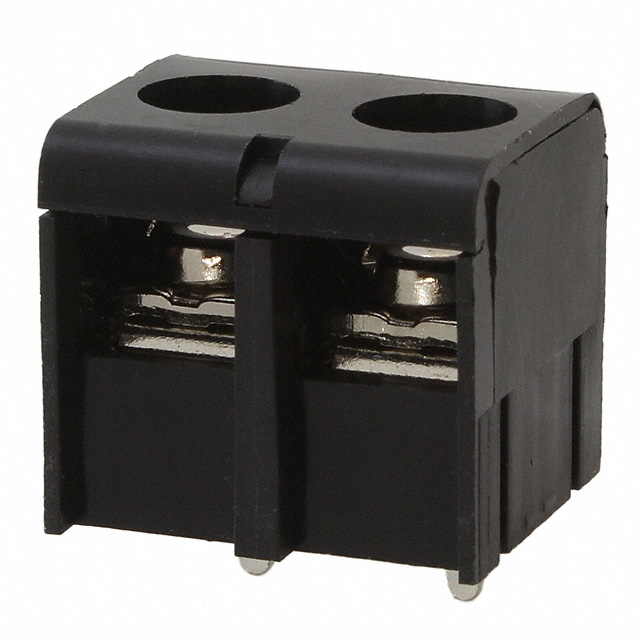

1546833-2

栅栏式接线端子 .375" 2P MOD W/COVER

.375", 2P, MOD W/ COVER

得捷:
CONN BARRIER STRIP 2CIRC 0.375"

贸泽:
栅栏式接线端子 .375" 2P MOD W/COVER

艾睿:
Create a bridge between two sides of a circuit by implementing this barrier strip 1546833-2 PCB terminal block from TE Connectivity. It has a maximum voltage rating of 300 V. It has a straight body orientation. This is a 1-row connector. Its pitch is 9.53 mm. This device has a maximum current rating of 15 A/contact. 1546833-2 is housed in polyamide. This product is 18.9 mm long, 7.5 mm tall and 16.5 mm deep. Its wire is 18-22 AWG. This quick disconnect terminal has an operating temperature of -40 to 120 °C. It uses the solder termination method.

安富利:
Conn Barrier Strip 2 POS 9.53mm Solder ST Thru-Hole 15A/Contact

Chip1Stop:
Conn Barrier Strip 2 POS 9.53mm Solder ST Thru-Hole 15A/Contact

MASTER:
.375 MODULAR TRIBARRIER W/ COVER, ASSEMBLY

Powell:
Barrier Strips, Barrier Strip Sockets

Online Components:
.375", 2P, MOD W/ COVER

Electro Sonic:
.375", 2P, MOD W/ COVER
