1546927-6

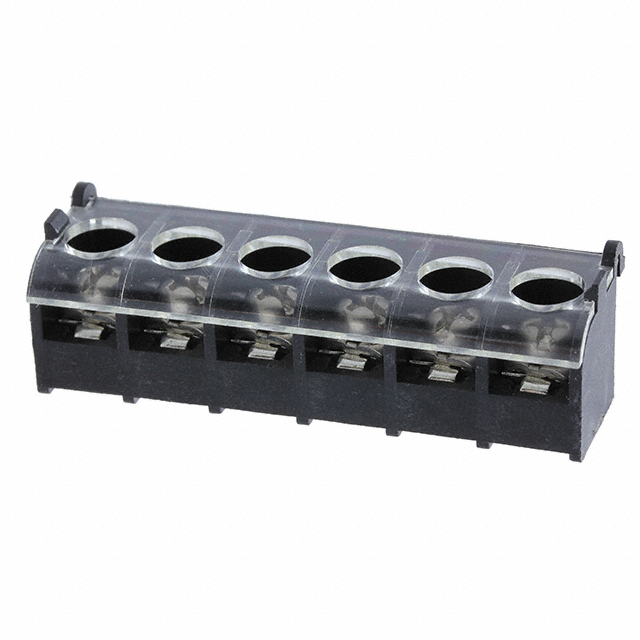

Conn Barrier Strip 6POS 8.26mm Solder ST Thru-Hole 15A/Contact

6 电路 0.325"（8.26mm） 隔板接线座 螺钉，带紧固板

得捷:
CONN BARRIER STRIP 6CIRC 0.325"

艾睿:
This barrier strip 1546927-6 PCB terminal block manufactured from TE Connectivity will bridge different sections of wires together. This is a 1-row connector. It has a straight body orientation. It has a maximum voltage rating of 300 VAC. Its pitch is 8.26 mm. This device has a maximum current rating of 15 A/contact. 1546927-6 is housed in polybutylene terephthalate. It uses the solder termination method. This product is 14.98 mm tall. Its wire is 14-22 AWG. This quick disconnect terminal has an operating temperature of -40 to 120 °C.

安富利:
Conn Barrier Strip 6 POS 8.26mm Solder ST Thru-Hole 15A/Contact

Chip1Stop:
Conn Barrier Strip 6 POS 8.26mm Solder ST Thru-Hole 15A/Contact Package

Verical:
Conn Barrier Strip 6 POS 8.26mm Solder ST Thru-Hole 15A/Contact Package

Newark:
# AMP - TE CONNECTIVITY  1546927-6  6P .325 TRI-BARRIER W/COVER New

MASTER:
TERMINAL BLOCK, .325 TRI BARRIER W/ COVER

Powell:
Barrier Strips, Barrier Strip Sockets

Online Components:
6P .325 TRI-BARRIER W/COVER

Electro Sonic:
6P .325 TRI-BARRIER W/COVER
