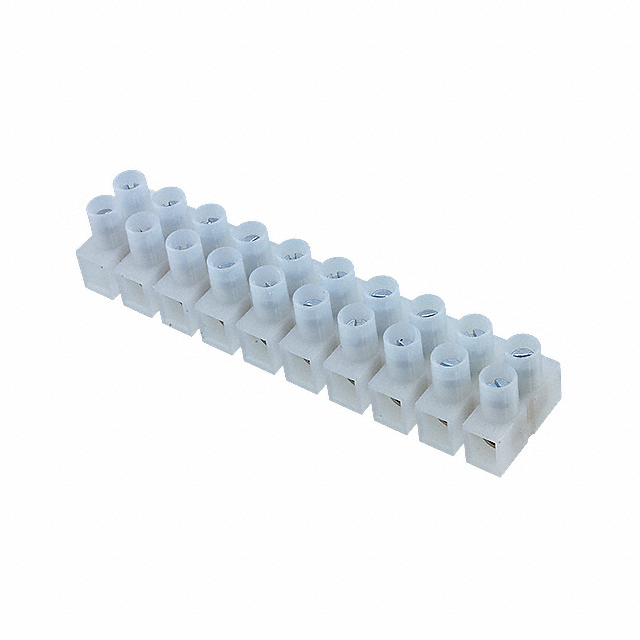

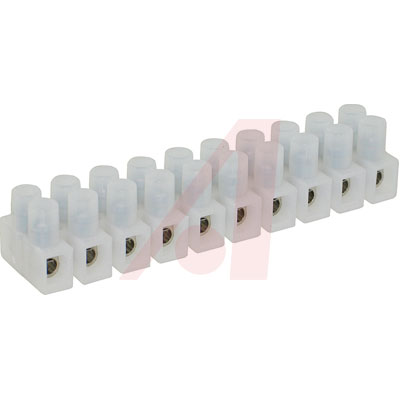

TSB230 系列 8mm 节距 30A 端子块,带电线保护器### Europa - 管状螺钉阻挡带
TSB230 系列 8mm 节距 30A 端子块,带电线保护器
### Europa - 管状螺钉阻挡带
得捷:
CONN TERM STRIP 10CIRC 0.315"
欧时:
TE Connectivity 1-1776293-0 10 路 端子束夹, 螺钉, 螺钉端接, 26 → 12 AWG线规格, 30A, 250 V
艾睿:
Keep your connections strong with this europa terminal blocks 1-1776293-0 PCB terminal block from TE Connectivity utilizing clamps and screws. This F connector&s;s 20 contacts that are made out of brass/steel and plated with tin/zinc. It has a female type gender. Its pitch is 8 mm. It has a straight body orientation. This is a 2-row connector. It has a maximum voltage rating of 250 VAC. 1-1776293-0 is housed in polyamide. This device has a maximum current rating of 30 A/contact. It uses the screw termination method. This product is 78 mm long, 15 mm tall and 17 mm deep. Its wire is 12-22 AWG. This quick disconnect terminal has an operating temperature of -35 to 100 °C.
Allied Electronics:
Conn; Term Strip; Barrier; 10Pole; 8.0mmPitch; DBLRow; 26-12; Series TSB230; 30A; 250V
Chip1Stop:
Conn Europa Terminal Blocks F 20 POS 8mm Screw ST Cable Mount 30A/Contact
Verical:
Conn Europa Terminal Block F 20 POS 8mm Screw ST Cable Mount 30A/Contact Package
MASTER:
Panel Mount Barrier Terminal Block - 1 Row - 10 Positions - 26 AWG - 12 AWG - 8 mm - 30 A.
Powell:
Europa Terminal Blocks
Online Components:
TSB23010DS=EUROPA TERM BLK,8MM
Electro Sonic:
Panel Mount Barrier Terminal Block - 1 Row - 10 Positions - 26 AWG - 12 AWG - 8 mm ...
触点数 20
线规 12AWG ~ 22AWG
触点电镀 Tin
额定电流 30 A
排数 2
电路数 10
易燃性等级 UL 94 V-2
额定电流Max 30A/触头
工作温度Max 100 ℃
工作温度Min -35 ℃
额定电压Max 250 VAC
额定电压 250 V
工作电压Max 250 VAC
安装方式 Panel, Chassis
引脚间距 8.00 mm
长度 78 mm
宽度 17 mm
高度 15 mm
引脚间距 8.00 mm
外壳颜色 Natural
颜色 Natural
触点材质 Brass
工作温度 -35℃ ~ 100℃
外壳材质 Nylon 6
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694030
