TE Connectivity 单排 8.26mm 中心线双阻挡阻挡带一系列单排双阻挡阻挡带,带 8.26mm 中心线。 这些双阻挡阻挡带具有扁平型块设计和线夹组合螺钉接线端子头,具有捆绑组合头的库存号 821-9025 和 821-2655 除外。
单排 8.26mm 中心线双阻挡阻挡带
一系列单排双阻挡阻挡带,带 8.26mm 中心线。 这些双阻挡阻挡带具有扁平型块设计和线夹组合螺钉头,具有捆绑组合头的库存号 821-9025 和 821-2655 除外。
得捷:
4DB-P107-06=4DB ASSEMBLY
欧时:

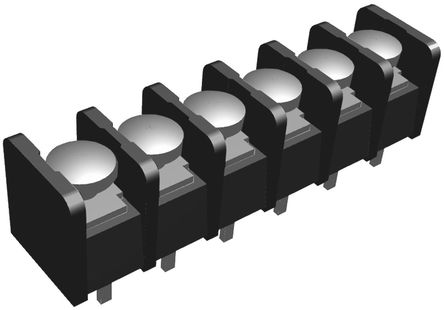

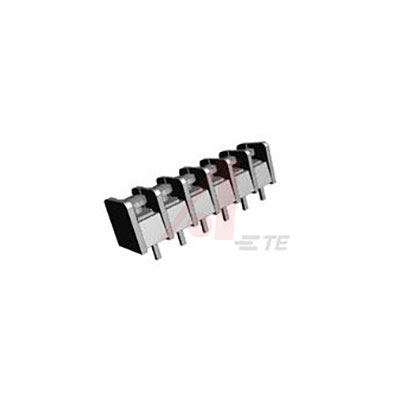

TE Connectivity 1-1437667-2 1行 6路 8.26mm节距 阻挡带, 22 → 12 AWG, 20A, 150 V
艾睿:
Say goodbye to wires becoming undone by using this barrier strip 1-1437667-2 PCB terminal block developed by TE Connectivity. Its pitch is 8.26 mm. This is a 1-row connector. It has a straight body orientation. It has a maximum voltage rating of 300 V. This device has a maximum current rating of 25 A/contact. 1-1437667-2 is housed in nylon. Its wire is 12-22 AWG. This product is 51.18 mm long, 13.46 mm tall and 12.7 mm deep. It uses the screw termination method.
Allied Electronics:
Buchanan; Conn; Term Strip; Barrier; 6Pole; 8.26mmPitch; SnglRow; 22-12; 4DB; 20A; 150V
安富利:
Conn Barrier Strip 6 POS 8.26mm Screw ST Cable Mount 25A/Contact
Verical:
Conn Barrier Strip 6 POS 8.26mm Screw ST Thru-Hole 25A/Contact Package
MASTER:
4DB-P107-06=4DB ASSEMBLY
Powell:
Barrier Style Terminal Blocks
Online Components:
4DB-P107-06=4DB ASSEMBLY
Electro Sonic:
4DB-P107-06=4DB ASSEMBLY
触点数 6
线规 12AWG ~ 22AWG
额定电流 20 A
排数 1
电路数 6
针脚数 6
额定电流Max 25A/触头
额定电压Max 300 V
额定电压 150 V
工作电压Max 300 V
安装方式 Through Hole
引脚间距 8.26 mm
高度 13.46 mm
引脚间距 8.26 mm
外壳颜色 Black
颜色 Black
触点材质 Copper Alloy, Steel
材质 Nylon
产品生命周期 Active
包装方式 Box
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536694040
