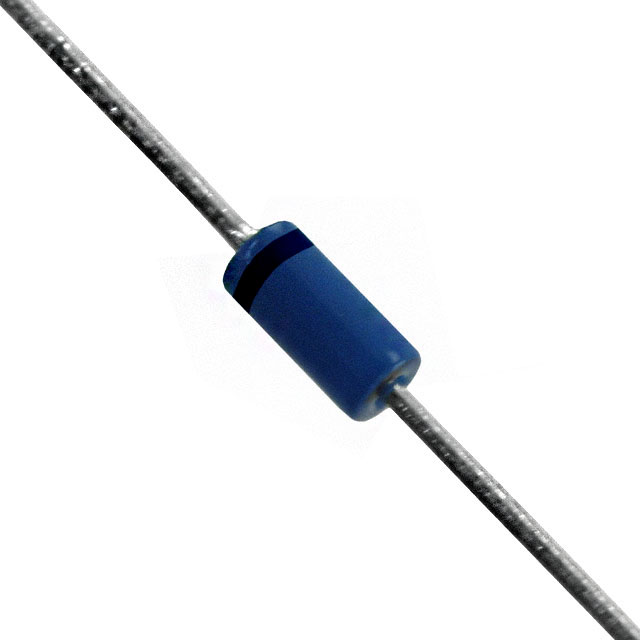

MICRO COMMERCIAL COMPONENTS 1N5222B-TP 齐纳二极管, 500mW, 2.5V, DO-35, 整卷
Zener Diode 2.5V 500mW ±5% Through Hole DO-35
得捷:
DIODE ZENER 2.5V 500MW DO35
e络盟:
齐纳二极管, 500mW, 2.5V, DO-35, 整卷
艾睿:
Check out this perfect 1N5222B-TP zener diode from Micro Commercial Components for operating in the reverse breakdown region. Its maximum leakage current is 100 μA. Its maximum power dissipation is 500 mW. Its test current is 20 mA. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It is made in a single configuration. This zener diode has an operating temperature range of -55 °C to 150 °C. This zener device has a nominal voltage of 2.5 V and a voltage tolerance of 5%.
Chip1Stop:
Diode Zener Single 2.5V 5% 500mW 2-Pin DO-35 T/R
Newark:
# MICRO COMMERCIAL COMPONENTS 1N5222B-TP Zener Single Diode, 2.5 V, 500 mW, DO-35, 5 %, 2 Pins, 150 °C
Win Source:
DIODE ZENER 2.5V 500MW DO35
额定电压DC 2.50 V
容差 ±5 %
额定功率 500 mW
针脚数 2
正向电压 1.1V @200mA
耗散功率 500 mW
测试电流 20 mA
稳压值 2.5 V
正向电压Max 1.1V @200mA
额定功率Max 500 mW
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 500 mW
安装方式 Through Hole
引脚数 2
封装 DO-35
封装 DO-35
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准
含铅标准 PB free
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1N5222B-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
MMSZ5222B-TP 美微科 | 完全替代 | 1N5222B-TP和MMSZ5222B-TP的区别 |
NTE5001A NTE Electronics | 类似代替 | 1N5222B-TP和NTE5001A的区别 |
1N5222BRL TAK Cheong | 类似代替 | 1N5222B-TP和1N5222BRL的区别 |
