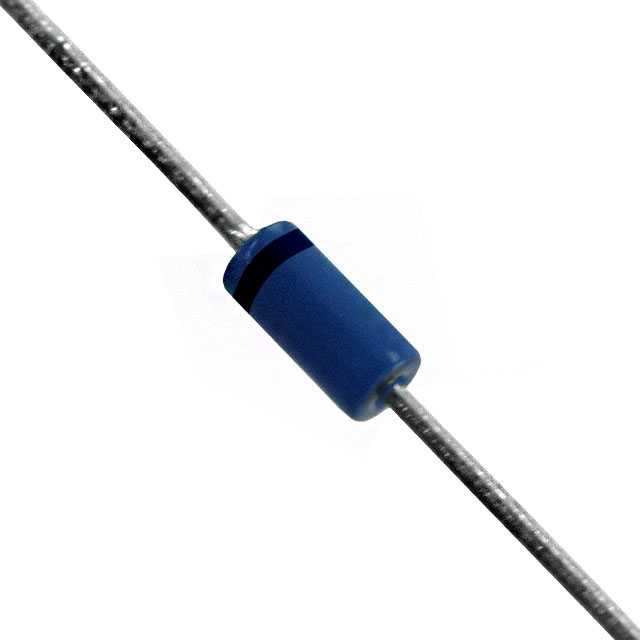

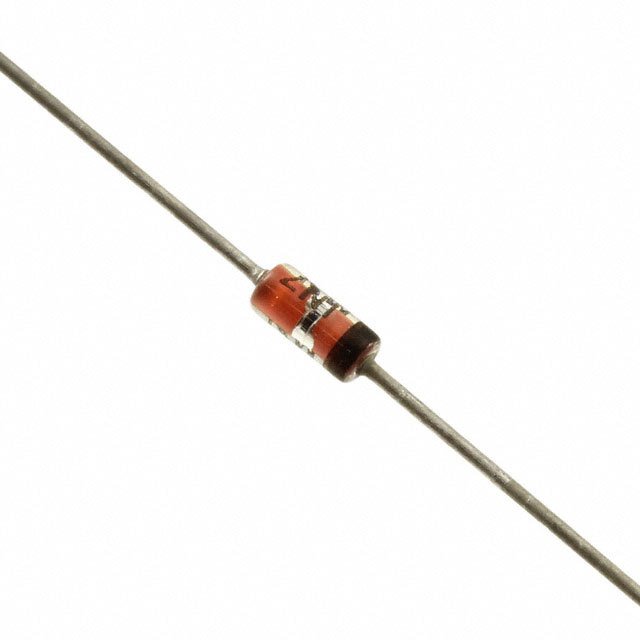

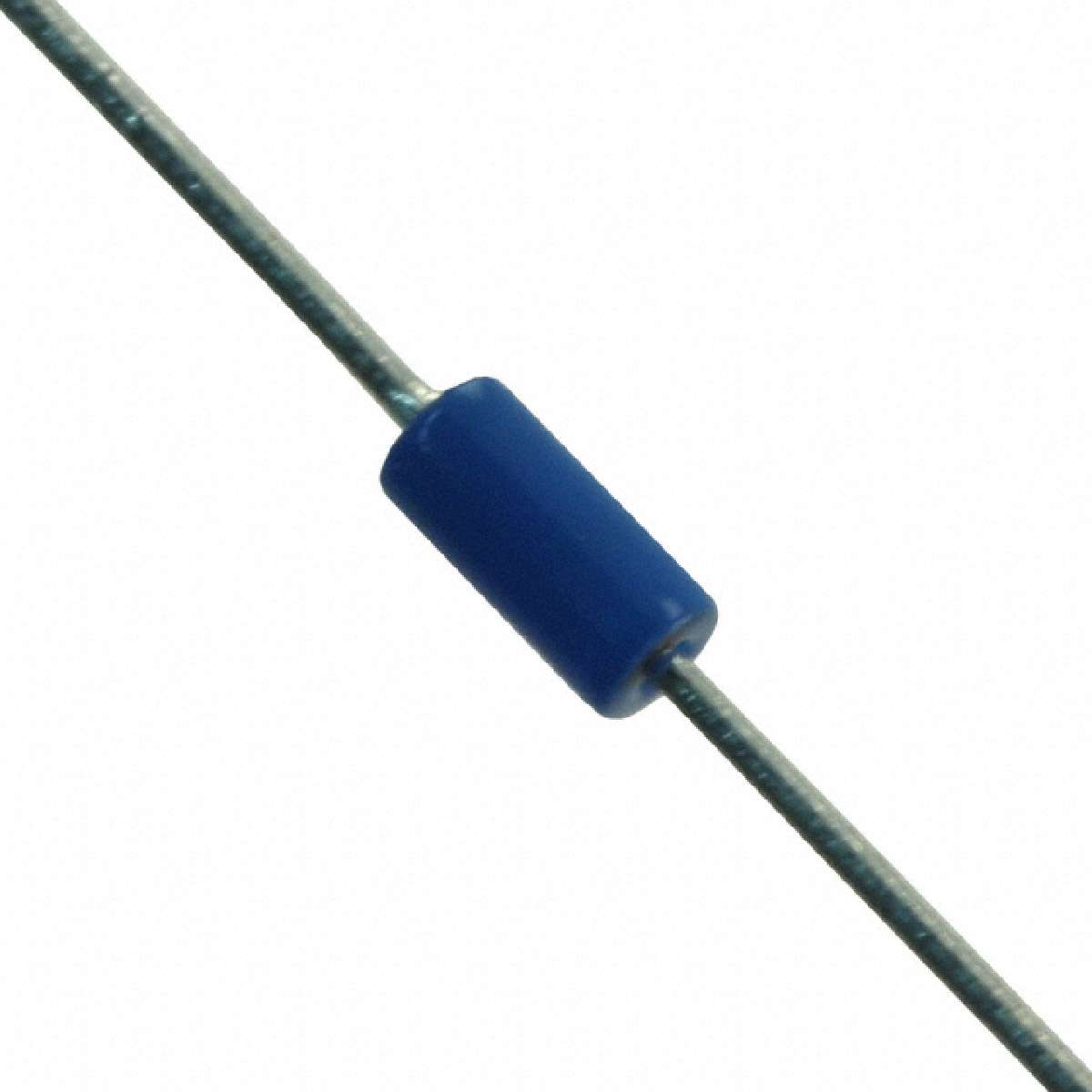

MICRO COMMERCIAL COMPONENTS 1N5236B-TP 齐纳二极管, 500mW, 7.5V, DO-35
Zener Diode 7.5V 500mW ±5% Through Hole DO-35
得捷:
DIODE ZENER 7.5V 500MW DO35
e络盟:
齐纳二极管, 500mW, 7.5V, DO-35
艾睿:
This 1N5236B-TP zener diode from Micro Commercial Components will allow you to run it in the reverse direction. Its maximum power dissipation is 500 mW. Its maximum leakage current is 3 μA. Its test current is 20 mA. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This zener device has a nominal voltage of 7.5 V and a voltage tolerance of 5%. This zener diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. It is made in a single configuration.
Chip1Stop:
Diode Zener Single 7.5V 5% 500mW 2-Pin DO-35 T/R
Verical:
Zener Diode Single 7.5V 5% 6Ohm 500mW 2-Pin DO-35 T/R
Newark:
# MICRO COMMERCIAL COMPONENTS 1N5236B-TP Zener Single Diode, 7.5 V, 500 mW, DO-35, 5 %, 2 Pins, 150 °C
额定电压DC 7.50 V
容差 ±5 %
额定功率 500 mW
针脚数 2
正向电压 1.1V @200mA
耗散功率 500 mW
测试电流 20 mA
稳压值 7.5 V
正向电压Max 1.1V @200mA
额定功率Max 500 mW
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Through Hole
引脚数 2
封装 DO-35
长度 4.2 mm
宽度 2 mm
高度 2 mm
封装 DO-35
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准
含铅标准 PB free
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1N5236B-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
1N5236B-T 美台 | 完全替代 | 1N5236B-TP和1N5236B-T的区别 |
MMSZ5236BT1G 安森美 | 功能相似 | 1N5236B-TP和MMSZ5236BT1G的区别 |
MMSZ4693T1G 安森美 | 功能相似 | 1N5236B-TP和MMSZ4693T1G的区别 |
