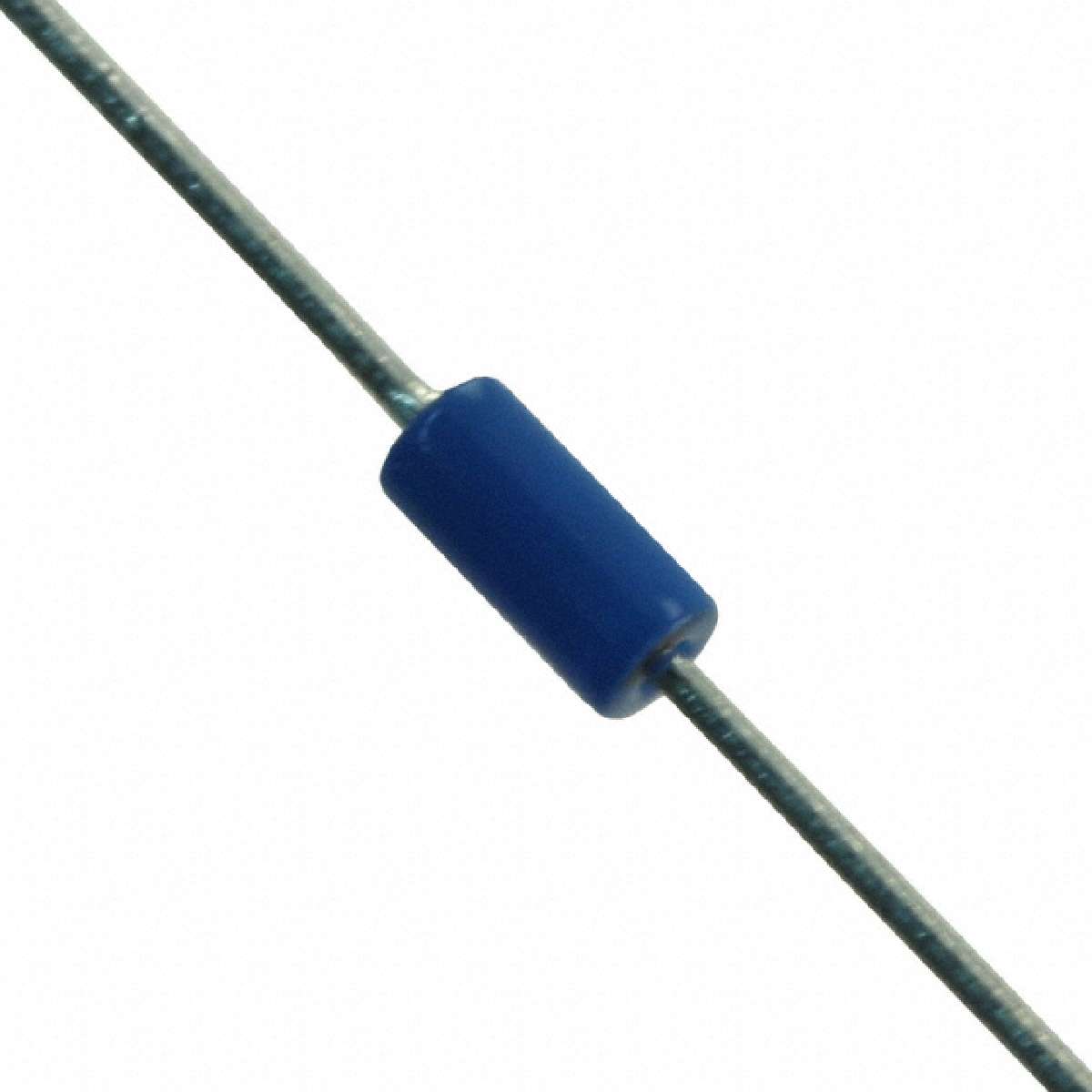

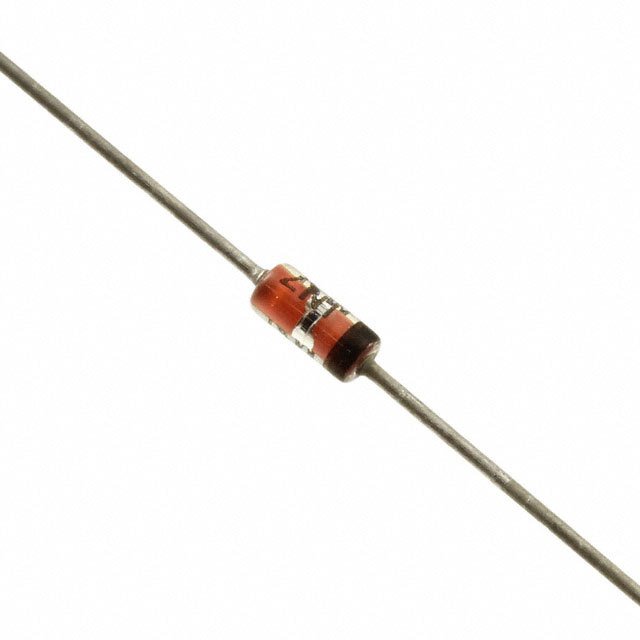

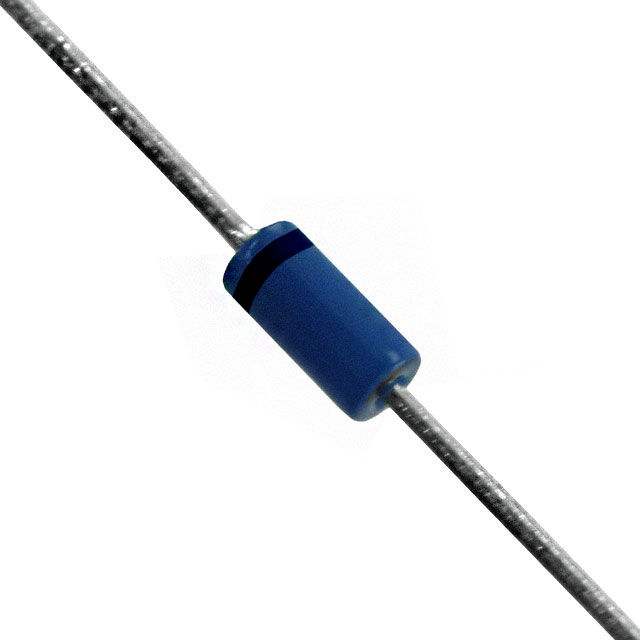

MICRO COMMERCIAL COMPONENTS 1N5237B-TP 齐纳二极管, 500mW, 8.2V, DO-35
Zener Diode 8.2V 500mW ±5% Through Hole DO-35
得捷:
DIODE ZENER 8.2V 500MW DO35
艾睿:
This 1N5237B-TP zener diode from Micro Commercial Components will allow you to run it in the reverse direction. Its maximum power dissipation is 500 mW. Its maximum leakage current is 3 μA. Its test current is 20 mA. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This zener device has a nominal voltage of 8.2 V and a voltage tolerance of 5%. It is made in a single configuration. This zener diode has a minimum operating temperature of -55 °C and a maximum of 150 °C.
Chip1Stop:
Diode Zener Single 8.2V 5% 500mW 2-Pin DO-35 T/R
Verical:
Zener Diode Single 8.2V 5% 8Ohm 500mW 2-Pin DO-35 T/R
Newark:
# MICRO COMMERCIAL COMPONENTS 1N5237B-TP Zener Single Diode, 8.2 V, 500 mW, DO-35, 5 %, 2 Pins, 150 °C
额定电压DC 8.20 V
容差 ±5 %
额定功率 500 mW
针脚数 2
正向电压 1.1V @200mA
耗散功率 500 mW
测试电流 20 mA
稳压值 8.2 V
正向电压Max 1.1V @200mA
额定功率Max 500 mW
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Through Hole
引脚数 2
封装 DO-35
长度 4.2 mm
宽度 2 mm
高度 2 mm
封装 DO-35
工作温度 -55℃ ~ 150℃
产品生命周期 Not Recommended
包装方式 Cut Tape CT
RoHS标准
含铅标准 PB free
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1N5237B-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
1N5237B-T 美微科 | 类似代替 | 1N5237B-TP和1N5237B-T的区别 |
1N5237B-A 美台 | 类似代替 | 1N5237B-TP和1N5237B-A的区别 |
