1N5256B-TP

稳压二极管 500mW 30V 600 Ohm 0.1 uA 23 Vr

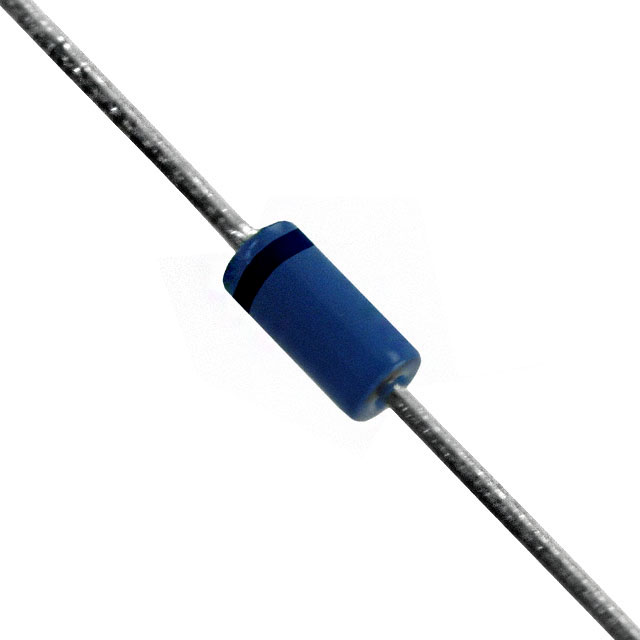

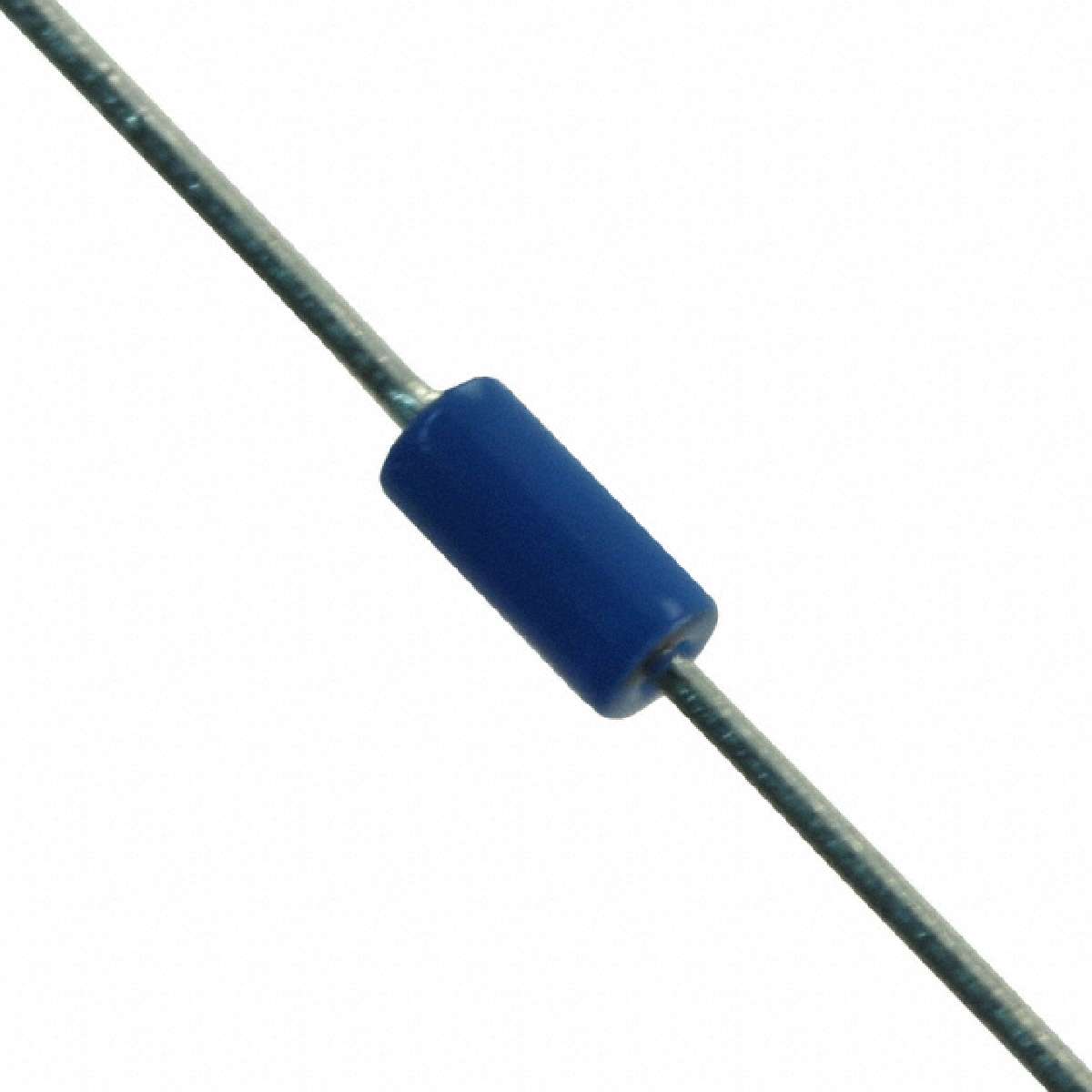

Zener Diode 30V 500mW ±5% Through Hole DO-35

得捷:
DIODE ZENER 30V 500MW DO35

贸泽:
稳压二极管 500mW 30V 600 Ohm 0.1 uA 23 Vr

艾睿:
This 1N5256B-TP zener diode from Micro Commercial Components is perfect for your circuit requiring a diode to operate in the reverse-breakdown region. Its maximum power dissipation is 500 mW. Its maximum leakage current is 0.1 μA. Its test current is 4.2 mA. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It is made in a single configuration. This zener diode has an operating temperature range of -55 °C to 150 °C. This zener device has a nominal voltage of 30 V and a voltage tolerance of 5%.

Chip1Stop:
Diode Zener Single 30V 5% 500mW 2-Pin DO-35 T/R
