DO-35 36V 0.5W1/2W

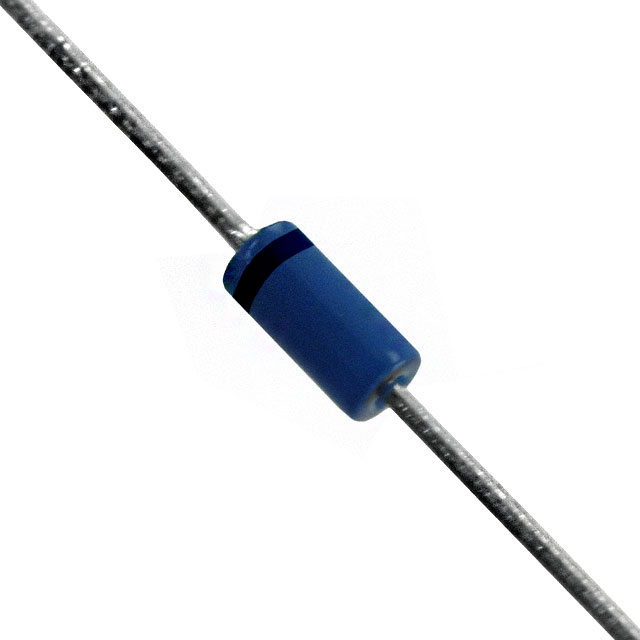

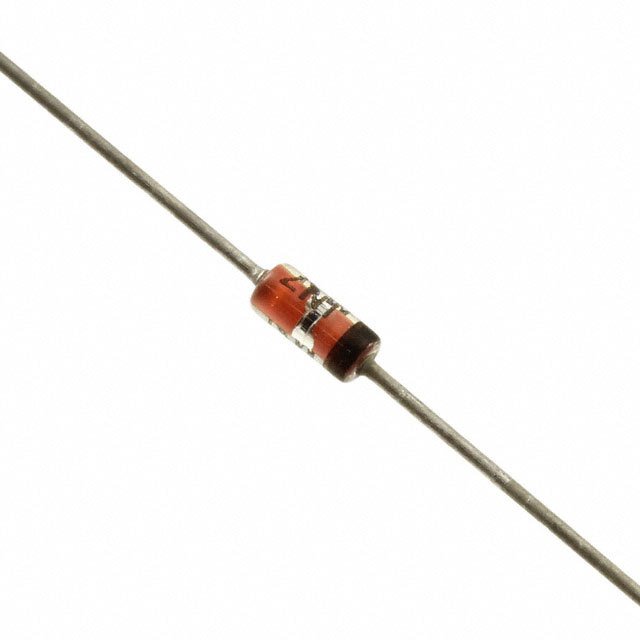

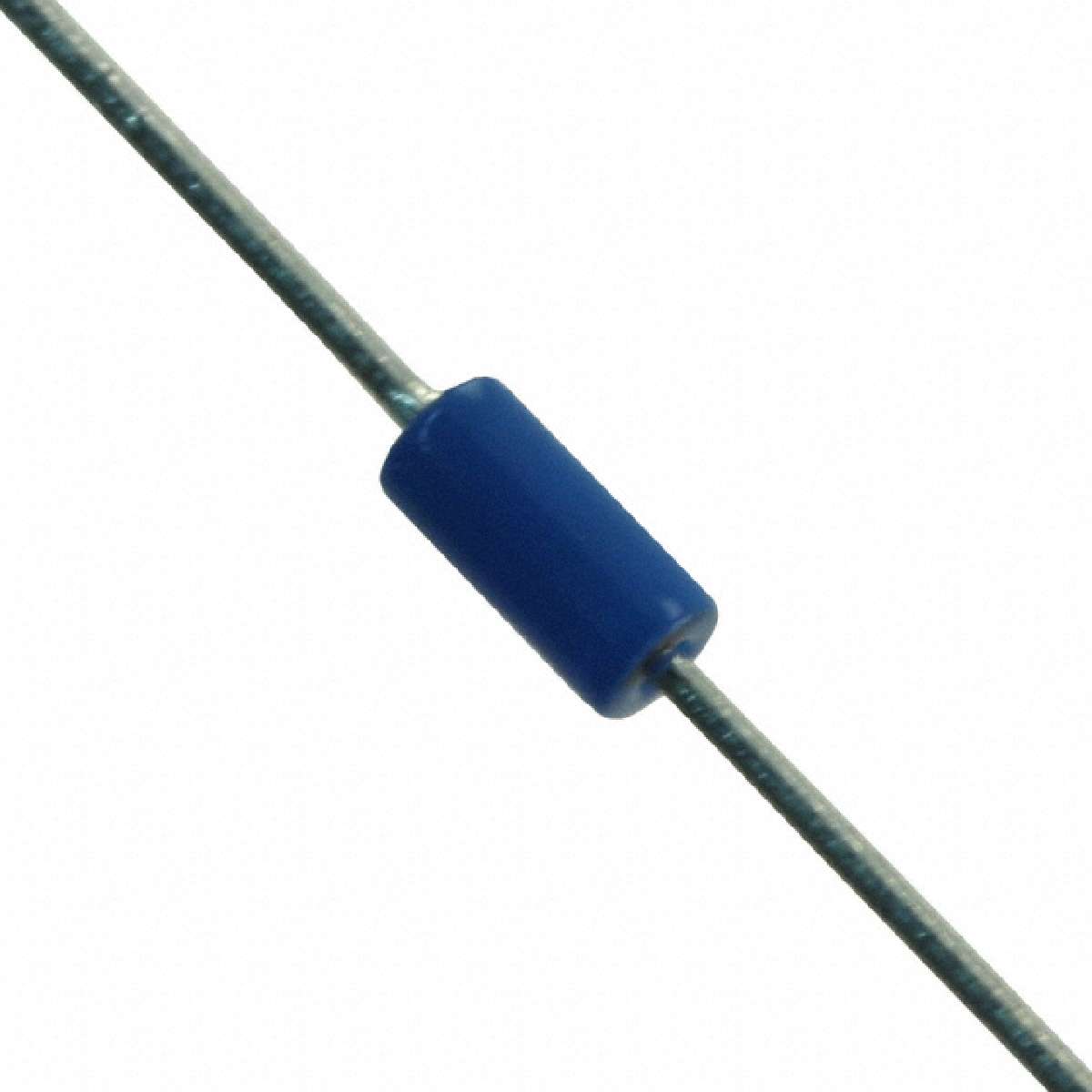

Zener Diode 36V 500mW ±5% Through Hole DO-35
得捷:
DIODE ZENER 36V 500MW DO35
艾睿:
This 1N5258B-TP zener diode from Micro Commercial Components is perfect for your circuit requiring a diode to operate in the reverse-breakdown region. Its maximum leakage current is 0.1 μA. Its maximum power dissipation is 500 mW. Its test current is 3.4 mA. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This zener device has a nominal voltage of 36 V and a voltage tolerance of 5%. It is made in a single configuration. This zener diode has an operating temperature range of -55 °C to 150 °C.
Chip1Stop:
Diode Zener Single 36V 5% 500mW 2-Pin DO-35 T/R
额定电压DC 36.0 V
容差 ±5 %
额定功率 500 mW
正向电压 1.1V @200mA
耗散功率 500 mW
测试电流 3.4 mA
稳压值 36 V
正向电压Max 1.1V @200mA
额定功率Max 500 mW
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Through Hole
引脚数 2
封装 DO-35
长度 4.2 mm
宽度 2 mm
高度 2 mm
封装 DO-35
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1N5258B-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
1N5258B-A 美台 | 类似代替 | 1N5258B-TP和1N5258B-A的区别 |
1N5258B 飞兆/仙童 | 功能相似 | 1N5258B-TP和1N5258B的区别 |
1N5258B-T 美台 | 功能相似 | 1N5258B-TP和1N5258B-T的区别 |
