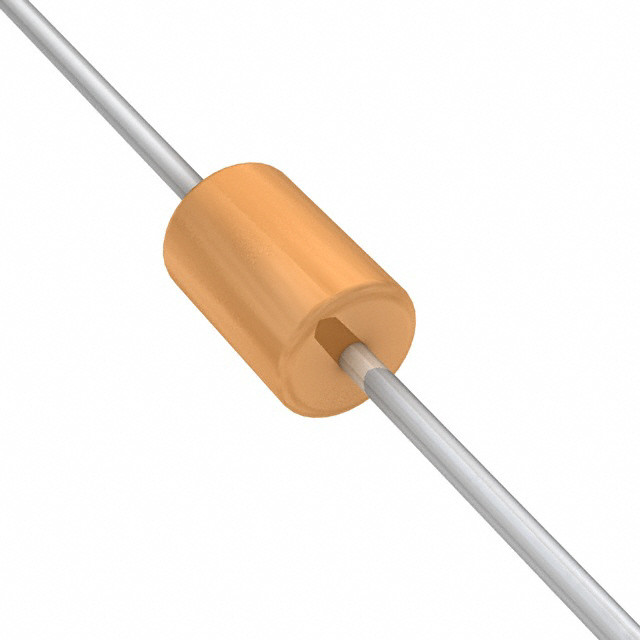

1N5247B-TR图片1
1N5247B-TR图片2
1N5247B-TR图片3
1N5247B-TR图片4
1N5247B-TR图片5
1N5247B-TR图片6
1N5247B-TR图片7
1N5247B-TR概述

齐纳二极管 500mW,1N52xx 系列,Vishay Semiconductor### 齐纳二极管,Vishay Semiconductor

FEATURES

• Silicon planar power Zener diodes

• Standard Zener voltage tolerance is ± 5 %

• These diodes are also available in MiniMELF case with the type designation TZM5221 to TZM5267, SOT-23 case with the type designations MMBZ5225 to MMBZ5267 and SOD-123 case with the types designations MMSZ5225 to MMSZ5267

• AEC-Q101 qualified

• Material categorization: For definitions of compliance please see www.vishay.com/doc?99912

APPLICATIONS

• Voltage stabilization


得捷:
DIODE ZENER 17V 500MW DO35


艾睿:
Diode Zener Single 17V 5% 500mW Automotive 2-Pin DO-35 T/R


Allied Electronics:
1N5247B-TR Zener Diode, 17V 5% 0.5 W Through Hole 2-Pin DO-35


安富利:
Diode Zener Single 17V 5% 500mW 2-Pin DO-35 T/R


富昌:
1N5247B 系列 500 mW 17 V 5 % 容差 通孔 齐纳二极管 - DO-35


Newark:
# VISHAY  1N5247B-TR  Zener Single Diode, 17 V, 500 mW, DO-204AH, 5 %, 2 Pins, 175 °C


1N5247B-TR中文资料参数规格
技术参数

容差 ±5 %

正向电压 1.1V @200mA

耗散功率 500 mW

测试电流 7.4 mA

稳压值 17 V

额定功率Max 500 mW

工作温度Max 175 ℃

耗散功率Max 0.5 W

封装参数

安装方式 Through Hole

引脚数 2

封装 DO-35

外形尺寸

长度 3.9 mm

宽度 1.7 mm

高度 1.7 mm

封装 DO-35

物理参数

工作温度 175 ℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买1N5247B-TR
型号: 1N5247B-TR
描述:齐纳二极管 500mW,1N52xx 系列,Vishay Semiconductor ### 齐纳二极管,Vishay Semiconductor
替代型号1N5247B-TR
型号/品牌 代替类型 替代型号对比

1N5247B-TR

Vishay Semiconductor 威世

当前型号

当前型号

1N5247B-T

美台

功能相似

1N5247B-TR和1N5247B-T的区别
