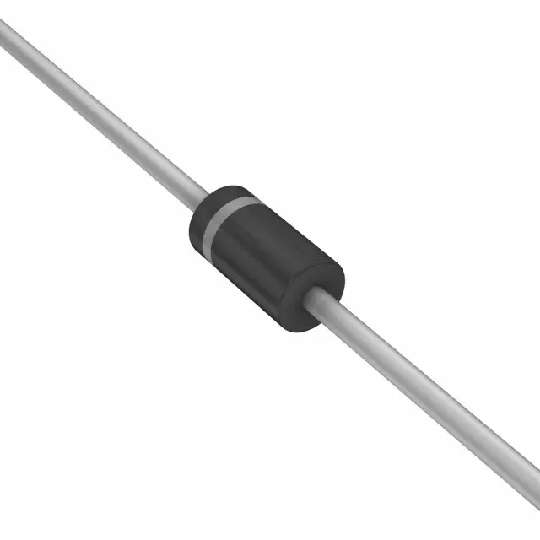

ON SEMICONDUCTOR 1N4935RLG 标准恢复二极管, 单, 200 V, 1 A, 1.2 V, 300 ns, 30 A
The is a Fast-recovery Rectifier with moulded epoxy case. It has solderable axial leads. It is designed for special applications such as DC power supplies, inverters, converters, ultrasonic systems, choppers, low RF interference and freewheeling diodes. A complete line of fast-recovery rectifiers having typical recovery time of 150ns providing high-efficiency at frequencies to 250kHz.
- .
- Cathode is indicated by polarity band
- .
- All external surfaces are corrosion-resistant and terminal leads are readily solderable
- .
- 260°C Maximum for 10 seconds lead and mounting surface temperature for soldering purposes
额定电压DC 200 V
额定电流 1.00 A
无卤素状态 Halogen Free
输出电流 ≤1.00 A
针脚数 2
正向电压 1.2V @1A
极性 Standard
热阻 65℃/W RθJA
反向恢复时间 300 ns
正向电流 1 A
最大正向浪涌电流（Ifsm） 30 A
正向电压Max 1.2 V
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Through Hole
引脚数 2
封装 DO-41
长度 5.2 mm
宽度 2.7 mm
高度 2.7 mm
封装 DO-41
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Industrial, 电源管理, Power Management, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
香港进出口证 NLR
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1N4935RLG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
1N4935RL 安森美 | 完全替代 | 1N4935RLG和1N4935RL的区别 |
1N4003G 安森美 | 类似代替 | 1N4935RLG和1N4003G的区别 |
1N4935G 安森美 | 类似代替 | 1N4935RLG和1N4935G的区别 |
