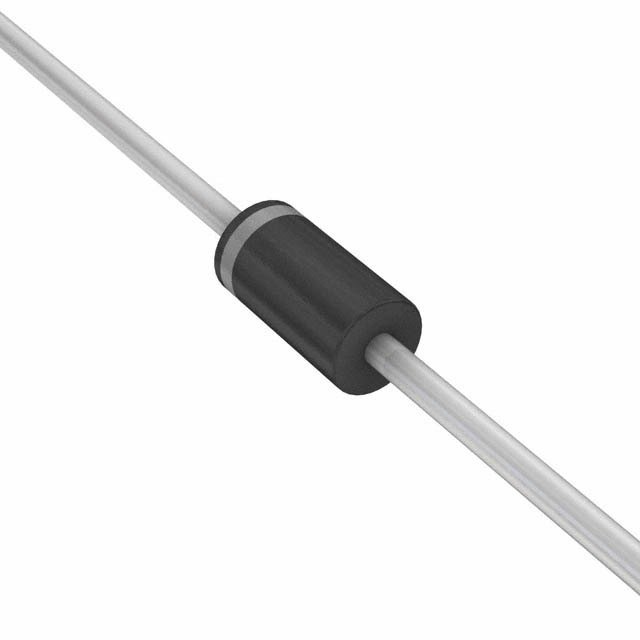

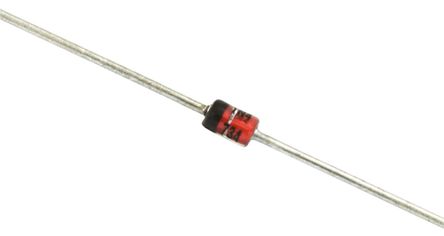

VISHAY 1N4754A-TR 齐纳二极管, Vz:39V
General-purpose use in AC-to-DC bridge full wave rectification for Monitor, TV, Printer, Switching Mode Power Supply, Adapter, Audio equipment, and Home Appliances applications.
**Features:
**
* Silicon Planar Power Zener Diodes
* Standard Zener Voltage Tolerance Is ±5%
* Diodes Are Also Available in Mini-MELF Case with the Type Designation TZM5221 ... TZM5267, SOT23 Case with the Type Designations MMBZ5225 ... MMBZ5267 and SOD123 Case with the Types Designations MMSZ5225 ... MMSZ5267
* Lead Pb-Free Component
* Component in Accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
**Applications:
**
* Voltage Stabilization
容差 ±5 %
击穿电压 39 V
针脚数 2
正向电压 1.2 V
耗散功率 1.3 W
热阻 110K/W RθJA
测试电流 6.5 mA
正向电流 200 mA
稳压值 39 V
额定功率Max 1.3 W
工作温度Max 175 ℃
工作结温Max 175 ℃
耗散功率Max 1300 mW
安装方式 Through Hole
引脚数 2
封装 DO-41-2
长度 4.1 mm
宽度 2.6 mm
高度 4.1 mm
封装 DO-41-2
工作温度 -65℃ ~ 175℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1N4754A-TR Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
1N4754A 威世 | 完全替代 | 1N4754A-TR和1N4754A的区别 |
1N4479 Sensitron Semiconductor | 类似代替 | 1N4754A-TR和1N4479的区别 |
1N4754A-T 威世 | 功能相似 | 1N4754A-TR和1N4754A-T的区别 |
