1A,Vishay Semiconductor采用工业标准封装类型的多用途、高效快速恢复功率二极管。薄型,高度为 1mm 雪崩整流器 ### 二极管和整流器,Vishay Semiconductor
**Features:
**
* Low Forward Voltage Drop
* Low Leakage Current
* High Forward Surge Capability
* Solder Dip 260°C, 40 s
* Component in Accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
**Applications:
**For use in general purpose rectification of powersupplies, inverters, converters and freewheeling diodes application. **Note:** These devices are not Q101 qualified.
得捷:
DIODE GEN PURP 200V 1A DO204AL
贸泽:
整流器 1.0 Amp 200 Volt
艾睿:
Diode Switching 200V 1A 2-Pin DO-204AL T/R
Allied Electronics:

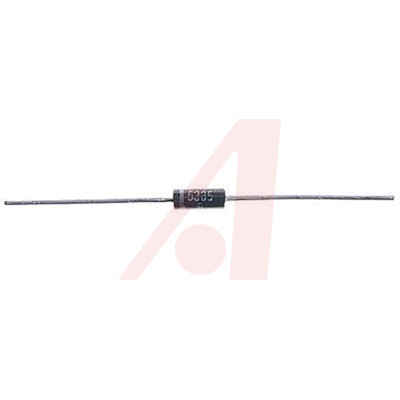

1N4935-E3/54, Switching Diode, 200V 1A, 200ns, 2-Pin DO-204AL
富昌:
1N4935 系列 200 V 1 A 5 uA 快速开关 塑料 整流器 - DO-204AL DO-41
Newark:
# VISHAY 1N4935-E3/54 Standard Recovery Diode, Switching, 200 V, 1 A, Single, 1.2 V, 200 ns, 30 A
正向电压 1.2 V
反向恢复时间 200 ns
正向电流 1 A
最大正向浪涌电流(Ifsm) 30 A
正向电压Max 1.2 V
正向电流Max 1 A
工作温度Max 150 ℃
工作温度Min -50 ℃
工作结温 -50℃ ~ 150℃
工作结温Max 150 ℃
安装方式 Through Hole
引脚数 2
封装 DO-204AL
长度 5.2 mm
宽度 2.7 mm
高度 2.7 mm
封装 DO-204AL
工作温度 50℃ ~ 150℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1N4935-E3/54 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
1N4003G 安森美 | 功能相似 | 1N4935-E3/54和1N4003G的区别 |
1N4936RLG 安森美 | 功能相似 | 1N4935-E3/54和1N4936RLG的区别 |
1N4935G 安森美 | 功能相似 | 1N4935-E3/54和1N4935G的区别 |
