DO-35 6.2V 0.5W1/2W
- 齐纳 6.2 V 500 mW ±5% 通孔 DO-35
得捷:

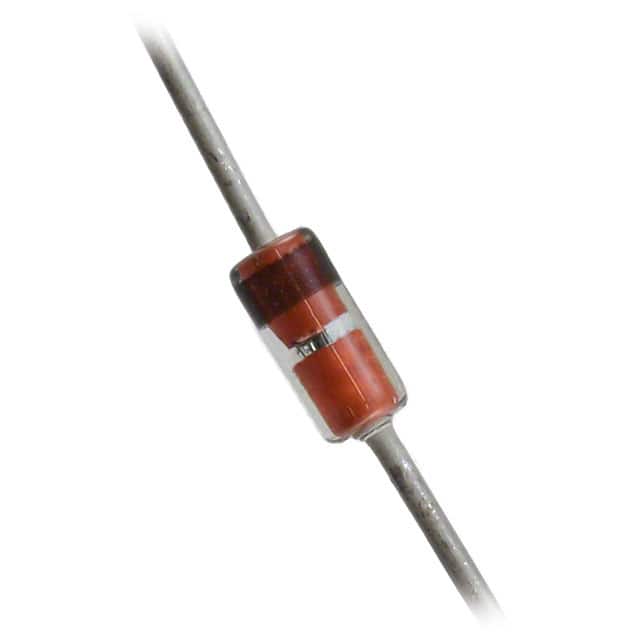

DIODE ZENER 6.2V 500MW DO35
艾睿:
If your circuit requires a diode to operate in the reverse breakdown region, then this 1N4627-TP zener diode from Micro Commercial Components is exactly what you need. Its test current is 0.25 mA. This device has a maximum regulator current of 61 mA. Its maximum leakage current is 10 μA. Its maximum power dissipation is 500 mW. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This zener device has a nominal voltage of 6.2 V and a voltage tolerance of 5%. It is made in a single configuration. This zener diode has an operating temperature range of -55 °C to 175 °C.
Chip1Stop:
Diode Zener Single 6.2V 5% 500mW 2-Pin DO-35 T/R
Verical:
Diode Zener Single 6.2V 5% 500mW 2-Pin DO-35 T/R
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1N4627-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
BZX79C6V2 飞兆/仙童 | 功能相似 | 1N4627-TP和BZX79C6V2的区别 |
BZX79C6V2_T50R 飞兆/仙童 | 功能相似 | 1N4627-TP和BZX79C6V2_T50R的区别 |
JANTX1N4627-1 美高森美 | 功能相似 | 1N4627-TP和JANTX1N4627-1的区别 |
