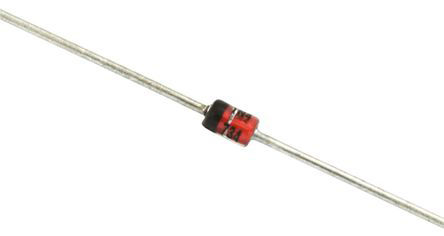

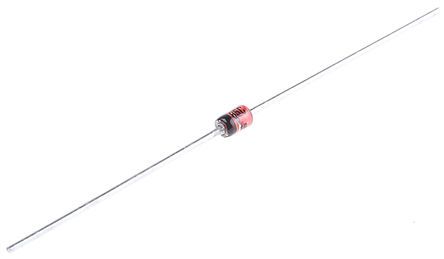

VISHAY 1N4763A-TR 齐纳二极管, 1.3W, 91V, DO-41
Features
• Silicon Planar Power Zener Diodes
• For use in stabilizing and clipping circuits with high power rating
• Standard Zener voltage tolerance is ± 5 %
• Lead Pb-free component
• Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
Applications
• Voltage stabilization
Mechanical Data
Case: DO-41 Glass case
Weight: approx. 310 mg
Packaging Codes/Options:
TR / 5 k per 13" reel, 25 k/box
TAP / 5 k per Ammo pack 52 mm tape, 25 k/box
容差 ±5 %
针脚数 2
正向电压 1.2 V
耗散功率 1.3 W
测试电流 2.8 mA
正向电流 200 mA
稳压值 91 V
正向电压Max 1.2V @200mA
额定功率Max 1.3 W
工作温度Max 175 ℃
工作温度Min -65 ℃
耗散功率Max 1300 mW
安装方式 Through Hole
引脚数 2
封装 DO-41
长度 4.1 mm
宽度 2.6 mm
高度 2.6 mm
封装 DO-41
工作温度 -65℃ ~ 175℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1N4763A-TR Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
1N4763 威世 | 功能相似 | 1N4763A-TR和1N4763的区别 |
1N4763A-T 美台 | 功能相似 | 1N4763A-TR和1N4763A-T的区别 |
