1718570002

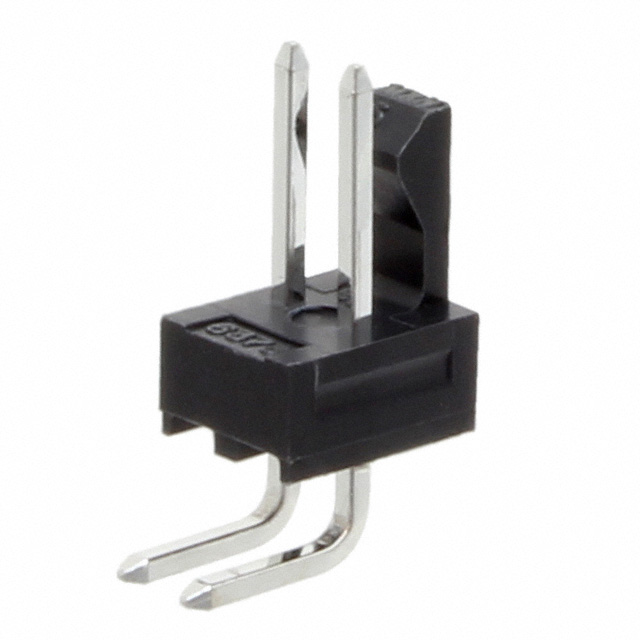

Conn Wire to Board HDR 2POS 2.54mm Solder RA Thru-Hole KK

Connector Header Through Hole, Right Angle 2 position 0.100" 2.54mm

得捷:
CONN HEADER R/A 2POS 2.54MM

立创商城:
1718570002

艾睿:
Support physical configuration options for jumper posts by mounting this wire to board 1718570002 header connector from Molex. This HDR connector&s;s 2 contacts that are made out of brass and plated with matte tin over nickel. It has a right angle body orientation. It has a maximum voltage rating of 250 V. This is a 1-row connector. It has a header type gender. Its pitch is 2.54 mm. This device has a maximum current rating of 4 A/contact. It uses the solder termination method. This connector has an operating temperature of -40 to 105 °C. This product is 4.93 mm long, 6.35 mm tall and 12.96 mm deep. 1718570002 is housed in black nylon.

安富利:
Conn Wire to Board HDR 2 POS 2.54mm Solder RA Thru-Hole Bag

TME:
Socket; wire-board; male; KK 254; 2.54mm; PIN:2; THT; 4A; tinned

Verical:
Conn Wire to Board HDR 2 POS 2.54mm Solder RA Side Entry Thru-Hole KK® Bag
