1050200001

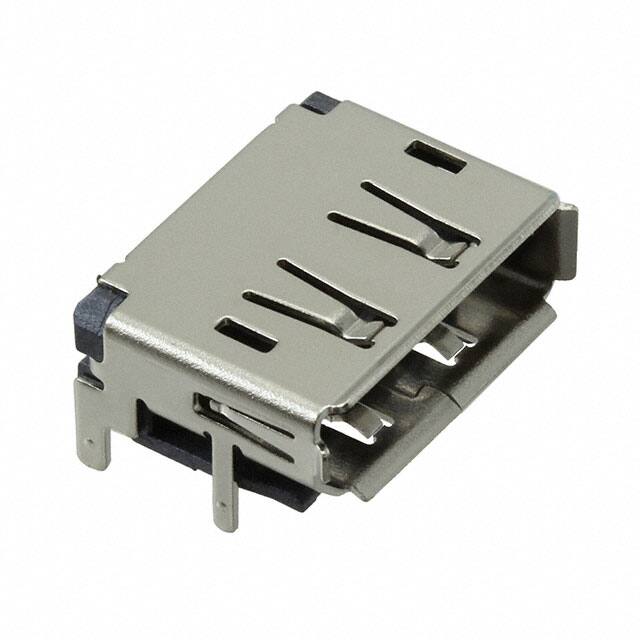

0.50毫米（ 0.020 “ ）间距的DisplayPort公插座，直角，通孔， DIP型 0.50mm .020" Pitch DisplayPort Male Receptacle, Right Angle, Through Hole, DIP Type

Need to connect video and sound in your application? Look no further and use this display port audio and video connector from . This RCP connector"s 20 contacts that are made out of copper alloy and plated with gold over nickel. This connector has a single port. It has a receptacle type gender. It has a maximum voltage rating of 40 VAC. It has a right angle body orientation. This device has a maximum current rating of 0.5 A/contact. 1050200001 is housed in thermoplastic. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This part has an operating temperature range of -20 °C to 85 °C. This product is 17.79 mm long, 6.85 mm tall and 12.63 mm deep. Its 20 terminals use the solder termination method.
