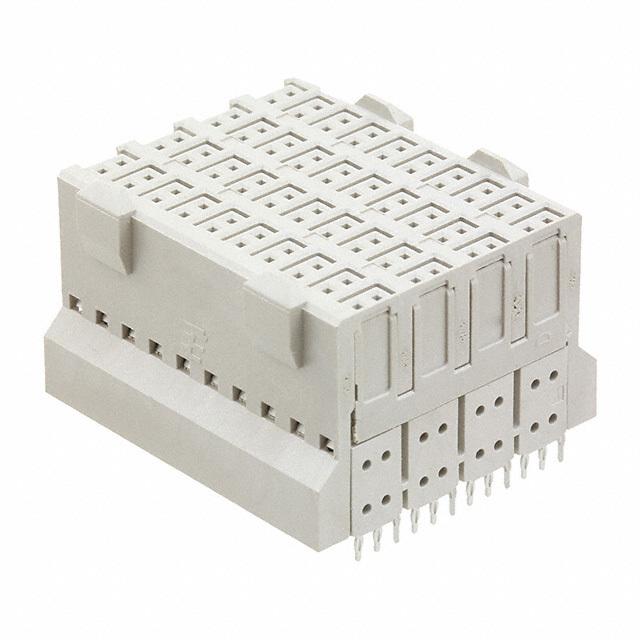

1469362-1

连接器, Z-PACK HM-Zd Series, 80 触点, 2.5 mm, 插座, 压配合, 8 排

120 插座，母型插口 通孔 - 高速度

得捷:
CONN RCPT HIGH SPEED 120POS PCB

e络盟:
连接器, Z-PACK HM-Zd Series, 80 触点, 2.5 mm, 插座, 压配合, 8 排

艾睿:
Communicate between multiple devices by linking them to this high speed 1469362-1 backplane connector from TE Connectivity. This RCP connector&s;s 80signal / 40ground contacts that are made out of copper-nickel-silicon and plated with gold over nickel. It has a receptacle type gender. Its pitch is 2.54 mm. It has a maximum voltage rating of 250 VAC. This is a 8-row connector. It has a straight body orientation. This device has a maximum current rating of 7 A/contact. This component will be shipped in tray format. This product is 24.95 mm long, 15.97 mm tall and 22.5 mm deep. It uses the press fit termination method. 1469362-1 is housed in polyester.

安富利:
Conn High Speed RCP 80 POS 2.54mm Solder ST Thru-Hole

Chip1Stop:
Conn High Speed RCP 80 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn High Speed RCP 80Signal/40Ground POS 2.54mm Press Fit ST Thru-Hole Tray

MASTER:
RECEPTACLE, 40 DIFFERTIAL PAIRS Z-PACK, HM-Zd VERTICAL 18mm STACK HEIGHT

Powell:
Z-PACK HM-Zd Connectors, Cable Assemblies and Accessories

Online Components:
HM-ZD VERT RECPT ASSY 18MM

Electro Sonic:
HM-ZD VERT RECPT ASSY 18MM
