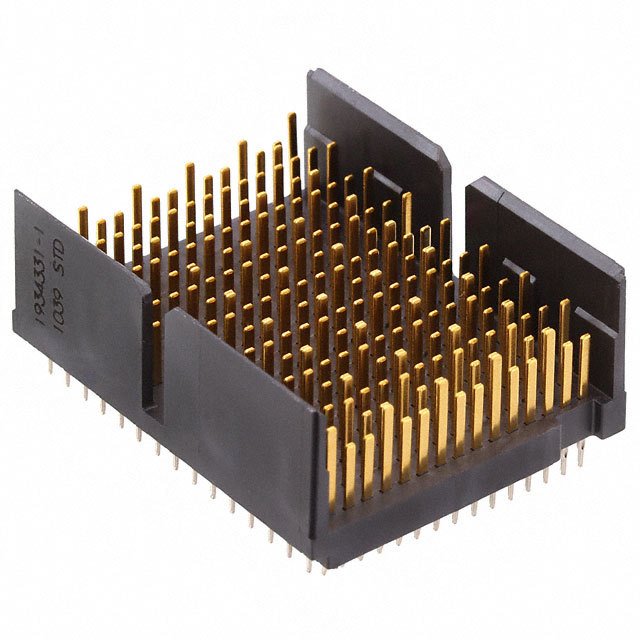

1934331-1

TE CONNECTIVITY 1934331-1 Connector, Z-PACK TinMan Series, Backplane, 80Contacts, Header, 1.4mm, Through Hole

Tin man Header Assy 5x16 Open

Product Highlights

Housing Gender = Connector - Pin

Contact Gender = Pin

5 Pairs

16 Columns

Number of Rows = 15

得捷:
CONN HEADER HD 240POS PCB

立创商城:
1934331-1

艾睿:
When small scale devices and operations need to interface with each other, use this 1934331-1 backplane connector from TE Connectivity. This HDR connector&s;s 240 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 1.9 mm. It has a maximum voltage rating of 250 VAC. This is a 15-row connector. It has a header type gender. It has a straight body orientation. This device has a maximum current rating of 0.5 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the press fit termination method. This product is 30.55 mm long, 11.8 mm tall and 24.4 mm deep. This backplane connector has an operating temperature of -65 to 90 °C. 1934331-1 is housed in black liquid crystal polymer.

安富利:
Conn Backplane HDR 240 POS 1.9mm Press Fit ST Thru-Hole

Chip1Stop:
Conn Backplane HDR 240 POS 1.9mm Press Fit ST Thru-Hole

Verical:
Conn Backplane HDR 240 POS 1.9mm Press Fit ST Thru-Hole Box/Tube

Newark:
# TE CONNECTIVITY  1934331-1  Connector, Z-PACK TinMan Series, Backplane, 80 Contacts, Header, 1.4 mm, Through Hole

MASTER:
HEADER ASSEMBLY, OPEN ENDED, 5 PAIR 16 COLUMN TinMan

Powell:
Hard Metric Connectors HDR 5P16C VRT TINMAN

Online Components:
Tin man Header Assy 5x16 Open

Electro Sonic:
Tin man Header Assy 5x16 Open
