3W,1N59xxB 系列 Surmetic™,On Semiconductor### Zener Diodes, ON Semiconductor
齐纳 3W,1N59xxB 系列 Surmetic™,On Semiconductor
### Zener Diodes,
欧时:

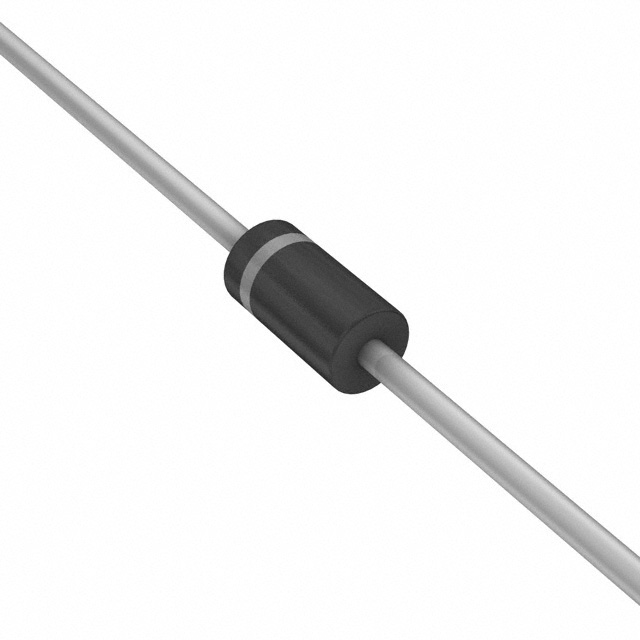

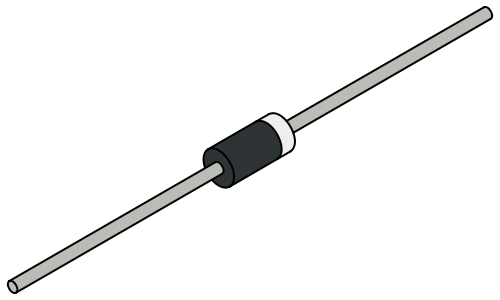

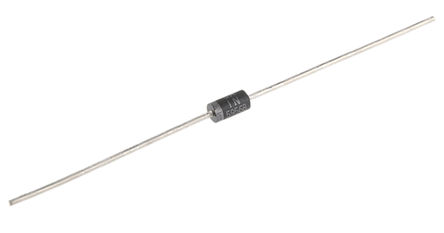

ON Semiconductor 1N5956BRLG 单路 齐纳二极管, 200V 5% 3 W, 2引脚 盒 59-10封装
得捷:
DIODE ZENER 200V 3W AXIAL
立创商城:
1N5956BRLG
e络盟:
ON SEMICONDUCTOR 1N5956BRLG. 齐纳二极管, VZ: 200V
艾睿:
When your circuit needs a diode to operate in the reverse breakdown region be sure to use a voltage regulator 1N5956BRLG zener diode from ON Semiconductor. Its maximum leakage current is 1 μA. Its maximum power dissipation is 3000 mW. Its test current is 1.9 mA. This device has a maximum regulator current of 7 mA. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This zener diode has an operating temperature range of -65 °C to 200 °C. It is made in a single configuration. This zener device has a nominal voltage of 200 V and a voltage tolerance of 5%.
Allied Electronics:
1N5956BRLG Zener Diode, 200V 5% 3 W Through Hole 2-Pin Case 59-10
安富利:
Diode Zener Single 200V 5% 3W 2-Pin DO-41 T/R
Chip1Stop:
Diode Zener Single 200V 5% 3W 2-Pin DO-41 T/R
Verical:
Zener Diode Single 200V 5% 1200Ohm 3000mW 2-Pin DO-41 T/R
Newark:
# ON SEMICONDUCTOR 1N5956BRLG Zener Single Diode, 200 V, 3 W, DO-41, 5 %, 2 Pins, 200 °C
罗切斯特:
Diode Zener Single 200V 5% 3W 2-Pin DO-41 T/R
Win Source:
DIODE ZENER 200V 3W AXIAL
额定电压DC 200 V
容差 ±5 %
额定功率 3.00 W
无卤素状态 Halogen Free
针脚数 2
正向电压 1.5V @200mA
耗散功率 3 W
测试电流 1.9 mA
稳压值 200 V
正向电压Max 1.5V @200mA
额定功率Max 3 W
工作温度Max 200 ℃
工作温度Min -65 ℃
耗散功率Max 3 W
安装方式 Through Hole
引脚数 2
封装 DO-41
长度 5.2 mm
宽度 2.7 mm
高度 5.2 mm
封装 DO-41
材质 Plastic
工作温度 -65℃ ~ 200℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Industrial, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1N5956BRLG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
1N5956BG 安森美 | 功能相似 | 1N5956BRLG和1N5956BG的区别 |
1N5956B 安森美 | 功能相似 | 1N5956BRLG和1N5956B的区别 |
1N5956BRL 安森美 | 功能相似 | 1N5956BRLG和1N5956BRL的区别 |
