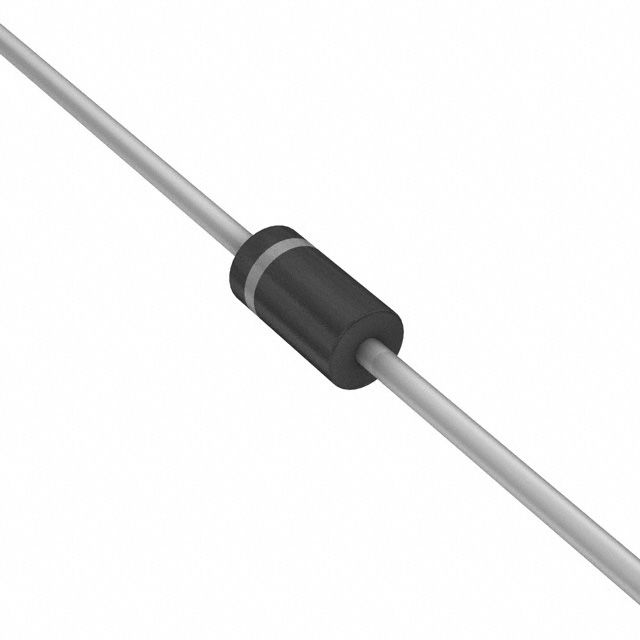

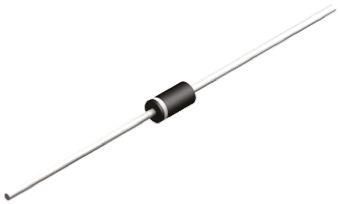

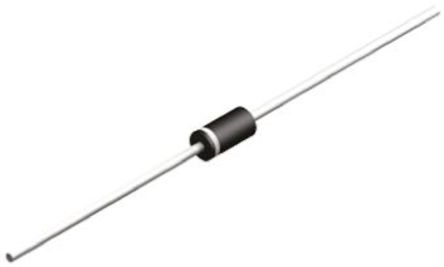

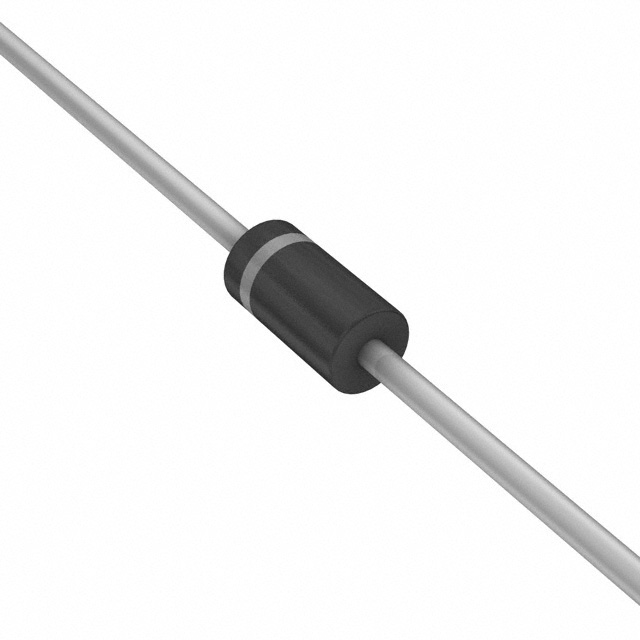

1N5924BRLG

3W，1N59xxB 系列 Surmetic™，On Semiconductor### Zener Diodes, ON Semiconductor

齐纳 3W，1N59xxB 系列 Surmetic™，On Semiconductor

得捷:
DIODE ZENER 9.1V 3W AXIAL

欧时:
### 齐纳二极管 3W，1N59xxB 系列 Surmetic™，On Semiconductor### Zener Diodes, ON Semiconductor

立创商城:
1N5924BRLG

贸泽:
Zener Diodes 9.1V 3W

艾睿:
The best way to operate a diode in the reverse-breakdown region in your circuit is by using a voltage regulator 1N5924BRLG zener diode from ON Semiconductor. Its maximum power dissipation is 3000 mW. This device has a maximum regulator current of 164 mA. Its test current is 41.2 mA. Its maximum leakage current is 5 μA. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This zener device has a nominal voltage of 9.1 V and a voltage tolerance of 5%. This zener diode has an operating temperature range of -65 °C to 200 °C. It is made in a single configuration.

Allied Electronics:
1N5924BRLG Zener Diode; 9.1V 5% 3 W Through Hole 2-Pin Case 59-10

安富利:
Diode Zener Single 9.1V 5% 3W 2-Pin DO-41 T/R

Chip1Stop:
Diode Zener Single 9.1V 5% 3W 2-Pin DO-41 T/R

Verical:
Zener Diode Single 9.1V 5% 4Ohm 3000mW 2-Pin DO-41 T/R

Newark:
# ON SEMICONDUCTOR  1N5924BRLG  Zener Single Diode, 9.1 V, 3 W, DO-41, 5 %, 2 Pins, 200 °C

罗切斯特:
Diode Zener Single 9.1V 5% 3W 2-Pin DO-41 T/R

Win Source:
DIODE ZENER 9.1V 3W AXIAL
