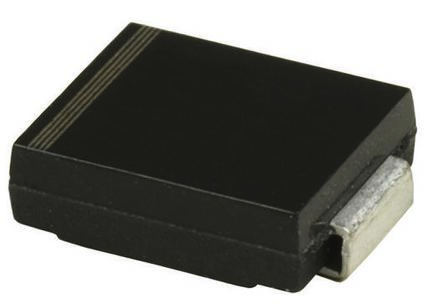

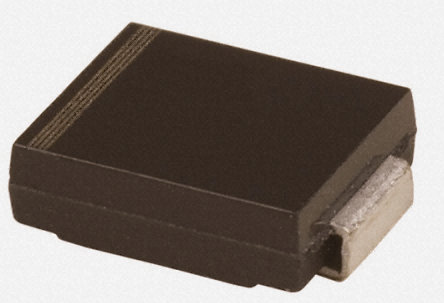

ON SEMICONDUCTOR 1SMA5921BT3G 单管二极管 齐纳, 通用, 6.8 V, 1.5 W, DO-214AC, 5 %, 2 引脚, 150 °C
齐纳 1.5W,1SMA59xxBT,SZ1SMA59xxBT 系列,
立创商城:
1SMA5921BT3G
得捷:
DIODE ZENER 6.8V 1.5W SMA
欧时:
齐纳二极管 1.5W,1SMA59xxBT,SZ1SMA59xxBT 系列,ON Semiconductor### Zener Diodes, ON Semiconductor
贸泽:
稳压二极管 6.8V 1.5W
e络盟:
单管二极管 齐纳, 通用, 6.8 V, 1.5 W, DO-214AC SMA, 5 %, 2 引脚, 150 °C
艾睿:
The best way to operate a diode in the reverse-breakdown region in your circuit is by using a voltage regulator 1SMA5921BT3G zener diode from ON Semiconductor. Its test current is 55.1 mA. This device has a maximum regulator current of 221 mA. Its maximum leakage current is 2.5 μA. Its maximum power dissipation is 1500 mW. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This zener device has a nominal voltage of 6.8 V and a voltage tolerance of 5%. It is made in a single configuration. This zener diode has an operating temperature range of -65 °C to 150 °C.
Allied Electronics:
1SMA5921BT3G Zener Diode; 6.8V 5% 0.5 WSMT 2-Pin SMA
安富利:
Diode Zener Single 6.8V 5% 500mW 2-Pin SMA T/R
Chip1Stop:
Diode Zener Single 6.8V 5% 500mW Automotive 2-Pin SMA T/R
Verical:
Diode Zener Single 6.8V 5% 1500mW Automotive 2-Pin SMA T/R
Newark:
Zener Single Diode, 6.8 V, 1.5 W, DO-214AC, 5 %, 2 Pins, 150 °C
罗切斯特:
Diode Zener Single 6.8V 5% 1.5W Automotive 2-Pin SMA T/R
Win Source:
DIODE ZENER 6.8V 1.5W SMA
额定电压DC 6.80 V
容差 ±5 %
额定功率 1.50 W
无卤素状态 Halogen Free
针脚数 2
正向电压 1.5V @200mA
耗散功率 500 mW
测试电流 55.1 mA
稳压值 6.8 V
正向电压Max 1.5V @200mA
额定功率Max 1.5 W
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 500 mW
安装方式 Surface Mount
引脚数 2
封装 DO-214AC
长度 4.32 mm
宽度 2.6 mm
高度 2 mm
封装 DO-214AC
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1SMA5921BT3G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
1SMA5921BT3 安森美 | 完全替代 | 1SMA5921BT3G和1SMA5921BT3的区别 |
SZ1SMA5921BT3G 安森美 | 功能相似 | 1SMA5921BT3G和SZ1SMA5921BT3G的区别 |
SMAJ5921BE3/TR13 美高森美 | 功能相似 | 1SMA5921BT3G和SMAJ5921BE3/TR13的区别 |
