非常高的电流容量低DCR Very high current capacity Low DCR

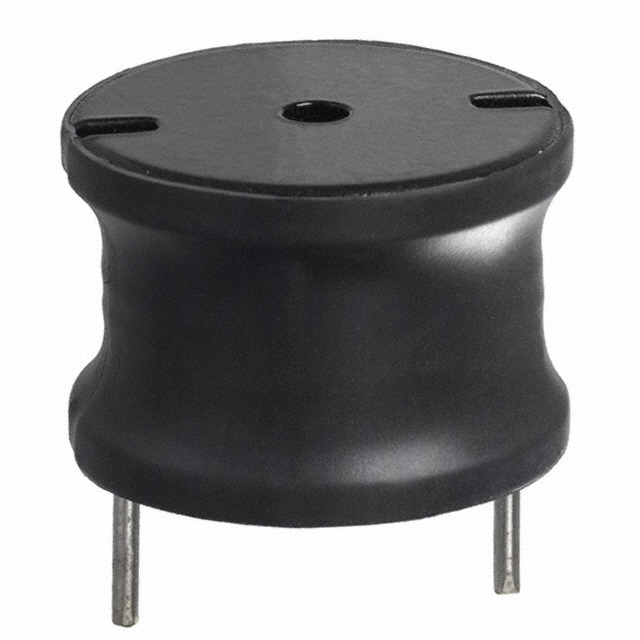

This high current rf choke leaded inductor from Bourns is convenient and easily removable. This part has a pitch of 29.21 mm. This leaded inductor has an operating temperature range of -55 °C to 105 °C. Its test frequency is 1K Hz. It has a tolerance of 10%. This leaded inductor has a maximum DC current of 16.2 A with a maximum resistance of 9m Ohm. This product is 26.16 mm tall with a diameter of 38.1 mm. It has an inductance of 22u H. This device utilizes bobbin core technology.
额定电流 16.2 A
容差 ±10 %
电感 22 µH
电感公差 ±10 %
测试频率 0.001 MHz
电阻DC） ≤9 mΩ
工作温度Max 105 ℃
工作温度Min -55 ℃
电阻DC Max 9 mΩ
安装方式 Through Hole
引脚数 2
封装 Radial
长度 1.03 in
高度 26.16 mm
封装 Radial
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
