1985195

Conn; Term Blk; PCB; 2; 3.5mm; 45Deg; 20-16AWG; 2A; 250V

** Contact COMBICON PTSA 3.5mm Angled PCB Terminal Blocks**

Professional Phoenix Contact fixed terminal blocks from the PTSA series

得捷:

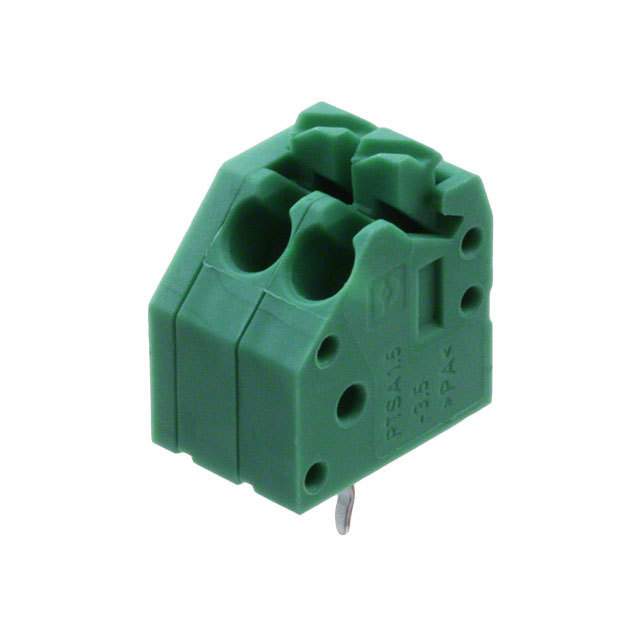

TERM BLOCK 2POS 45DEG 3.5MM PCB

艾睿:
Keep your connections strong with this spring cage 1985195 PCB terminal block from Phoenix Contact utilizing clamps and screws. Its pitch is 3.5 mm. It has a maximum voltage rating of 250 V. This is a 1-row connector. 1985195 is housed in polyamide. This device has a maximum current rating of 8 A. Its wire is 16-20 AWG. This product is 8.5 mm long, 13.1 mm tall and 12 mm deep. It uses the solder termination method.

Allied Electronics:
Conn; Term Blk; PCB; 2; 3.5 mm; 45 Deg; 20-16 AWG; 2 A; 250 V

Verical:
Conn PC Terminal Block 2 POS 3.5mm Solder Thru-Hole 8A Cardboard

MASTER:
PCB terminal block - nominal current: 8 A - rated voltage III/2: 400 V - nominal cross section: 1.5 mm² - pitch: 3.5 mm - number of positions: 2 - connection method: Push-in spring connection - mounting: Wave soldering - conductor/PCB connection directi

Online Components:
Conn PC Terminal Block 2 POS 3.5mm Solder Thru-Hole 8A

Electro Sonic:
PCB terminal block - nominal current: 8 A - rated voltage III/2: 400 V - nominal cross section: 1.5 mm² ...
