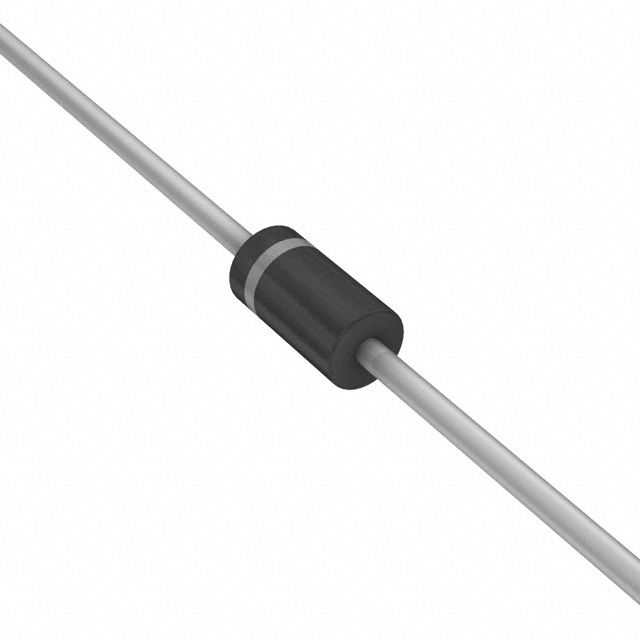

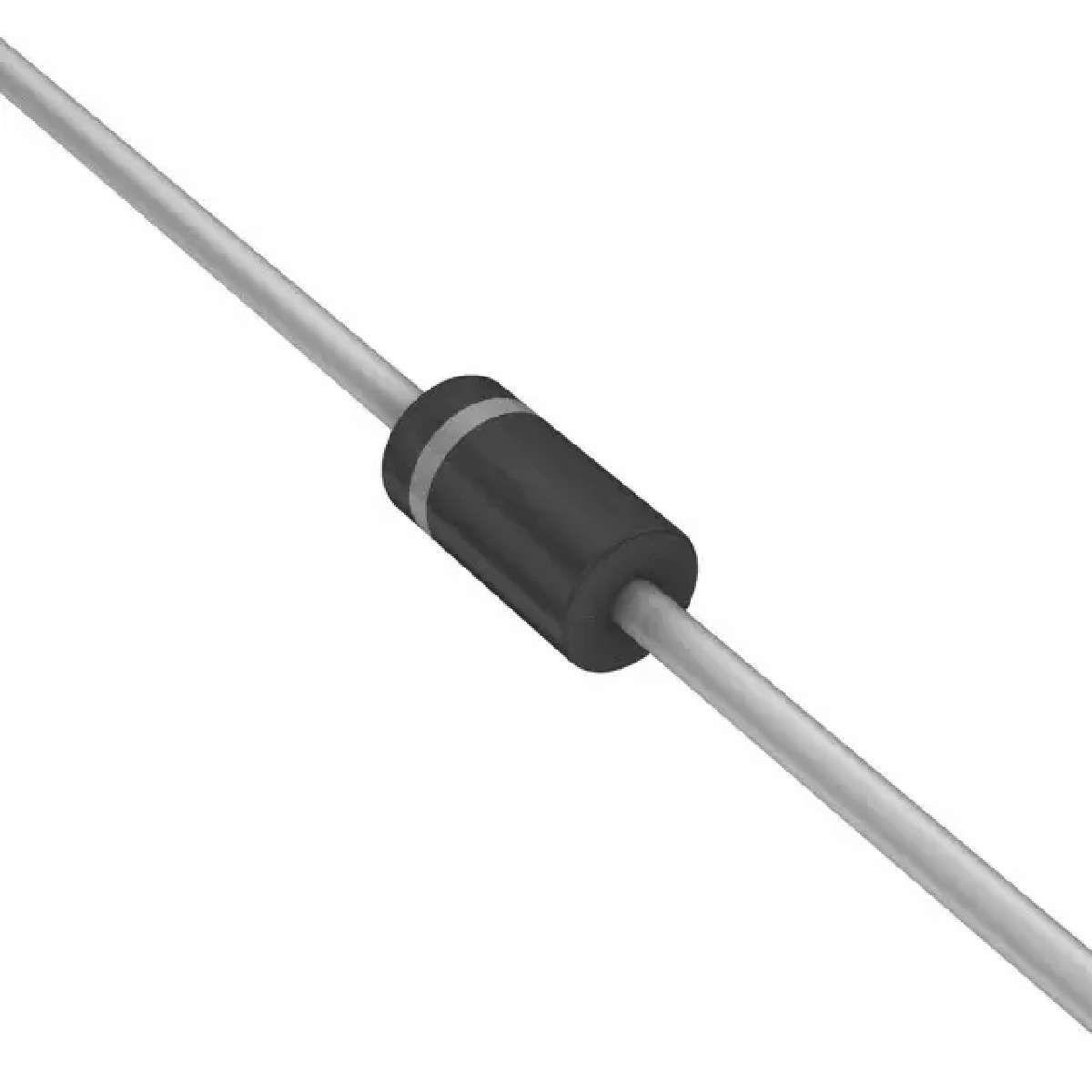

3W,1N59xxB 系列 Surmetic™,On Semiconductor### Zener Diodes, ON Semiconductor
齐纳 3W,1N59xxB 系列 Surmetic™,On Semiconductor
得捷:
DIODE ZENER 12V 3W AXIAL
立创商城:
1N5927BRLG
欧时:
### 齐纳二极管 3W,1N59xxB 系列 Surmetic™,On Semiconductor### Zener Diodes, ON Semiconductor
贸泽:
Zener Diodes 12V 3W
e络盟:
单管二极管 齐纳, 12 V, 3 W, DO-41 DO-204AL, 5 %, 2 引脚, 200 °C
艾睿:
Need to run a diode in the breakdown region? No problem, use a voltage regulator 1N5927BRLG zener diode from ON Semiconductor. This device has a maximum regulator current of 125 mA. Its test current is 31.2 mA. Its maximum leakage current is 1 μA. Its maximum power dissipation is 3000 mW. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This zener device has a nominal voltage of 12 V and a voltage tolerance of 5%. It is made in a single configuration. This zener diode has an operating temperature range of -65 °C to 200 °C.
Allied Electronics:
1N5927BRLG Zener Diode, 12V 5% 3 W Through Hole 2-Pin Case 59-10
安富利:
Diode Zener Single 12V 5% 3W 2-Pin DO-41 T/R
Chip1Stop:
Diode Zener Single 12V 5% 3W 2-Pin DO-41 T/R
Verical:
Zener Diode Single 12V 5% 6.5Ohm 3000mW 2-Pin DO-41 T/R
罗切斯特:
Diode Zener Single 12V 5% 3W 2-Pin DO-41 T/R
Win Source:
DIODE ZENER 12V 3W AXIAL
额定电压DC 6.20 V
容差 ±5 %
额定功率 3.00 W
无卤素状态 Halogen Free
针脚数 2
正向电压 1.5V @200mA
耗散功率 3 W
测试电流 31.2 mA
稳压值 12 V
正向电压Max 1.5V @200mA
额定功率Max 3 W
工作温度Max 200 ℃
工作温度Min -65 ℃
耗散功率Max 3 W
安装方式 Through Hole
引脚数 2
封装 DO-41-2
长度 5.2 mm
高度 5.2 mm
封装 DO-41-2
工作温度 -65℃ ~ 200℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1N5927BRLG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
1N5927BG 安森美 | 完全替代 | 1N5927BRLG和1N5927BG的区别 |
1N5927B 安森美 | 完全替代 | 1N5927BRLG和1N5927B的区别 |
1N5927BRL 安森美 | 完全替代 | 1N5927BRLG和1N5927BRL的区别 |
