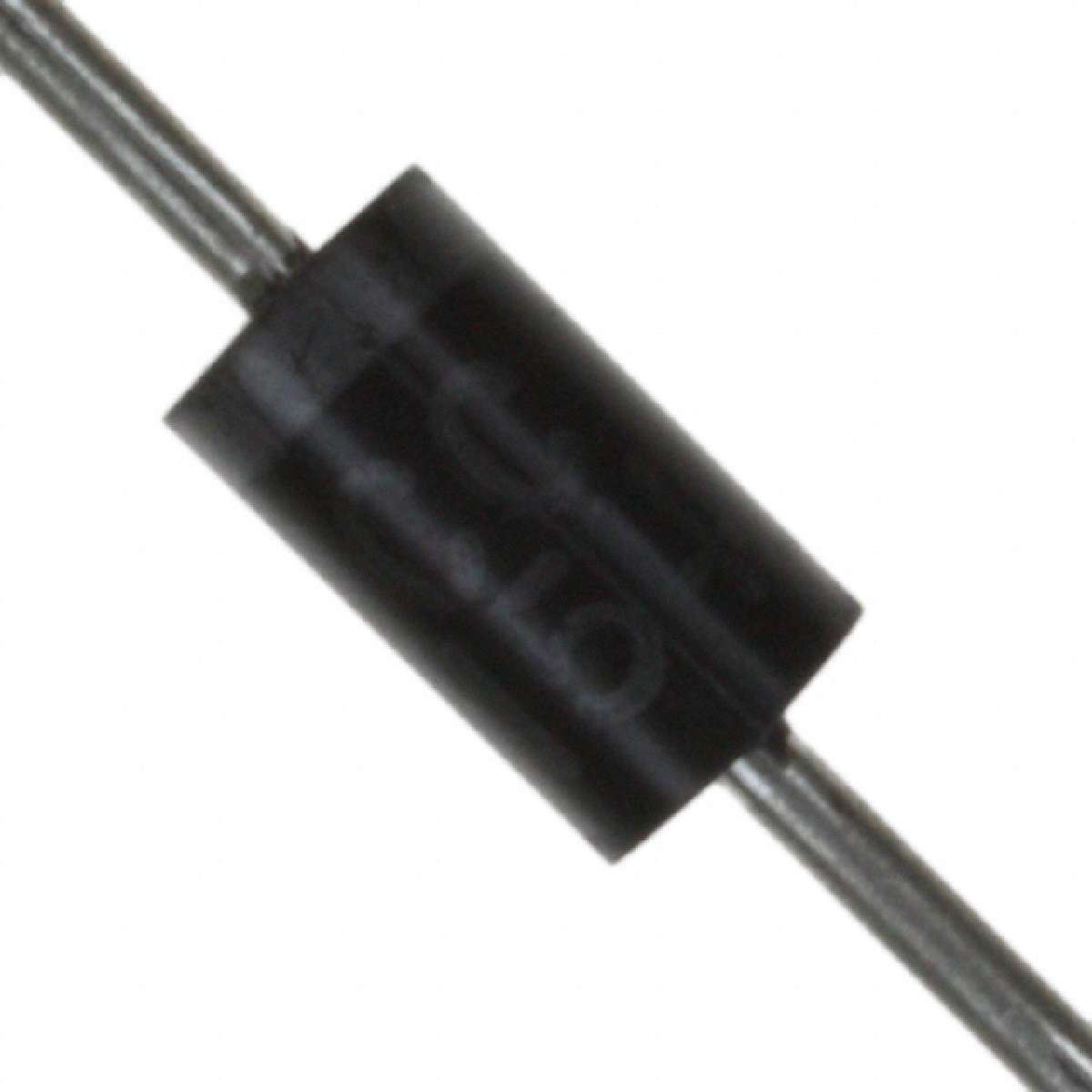

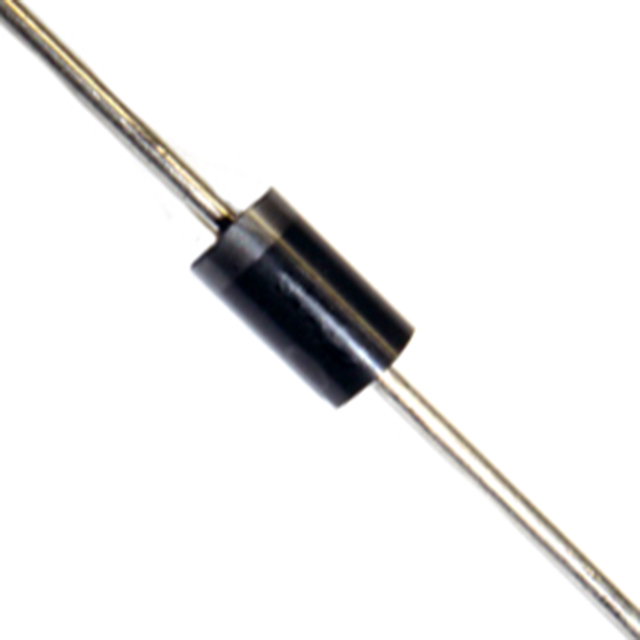

1N5822-TP

肖特基二极管与整流器 3.0A 40V

Features

• Halogen free available upon request by adding suffix "-HF"

• Lead Free Finish/RoHS CompliantNote 1 "P" Suffix designates RoHS Compliant. See ordering information

• Low Forward Voltage Drop and High Current Capability

• High Surge Current Capability

• Epoxy meets UL 94 V-0 flammability rating

• Moisture Sensitivity Level 1

得捷:
DIODE SCHOTTKY 40V 3A DO201AD

立创商城:
40V 525mV@3A

贸泽:
肖特基二极管与整流器 3.0A 40V

艾睿:
Converting from AC to DC is simple when using a Schottky diode 1N5822-TP rectifier from Micro Commercial Components. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This rectifier has a minimum operating temperature of -55 °C and a maximum of 125 °C. Its peak non-repetitive surge current is 80 A, while its maximum continuous forward current is 3@Ta=85C A. It is made in a single configuration.

富昌:
1N5822 Series 3 A 40 V Through-Hole Schottky Rectifier Diode - DO-201AD

Chip1Stop:
Diode Schottky 40V 3A 2-Pin DO-201AD T/R

Verical:
Rectifier Diode Schottky 40V 3A 2-Pin DO-201AD T/R

Win Source:
DIODE SCHOTTKY 40V 3A DO201AD
