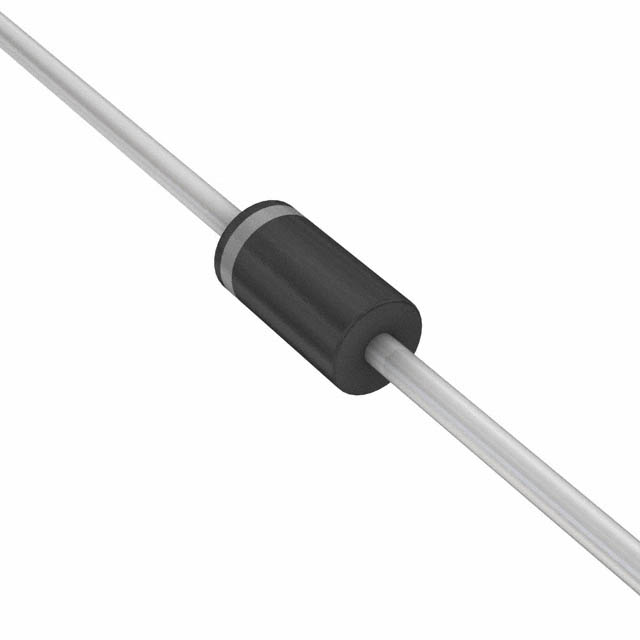

1N4946GPHE3/73

整流器 600 Volt 1.0A 250ns Glass Passivated

Glass Passivated Junction Fast Switching Rectifier

FEATURES

• Superectifier structure for high reliability condition

• Cavity-free glass-passivated junction

• Fast switching for high efficiency

• Low leakage current

• High forward surge capability

• Meets environmental standard MIL-S-19500

• Solder dip 275 °C max. 10 s, per JESD 22-B106

• AEC-Q101 qualified

• Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC

TYPICAL APPLICATIONS

For use in fast switching rectification of power supply, inverters, converters and freewheeling diodes for consumer, automotive and telecommunication.
