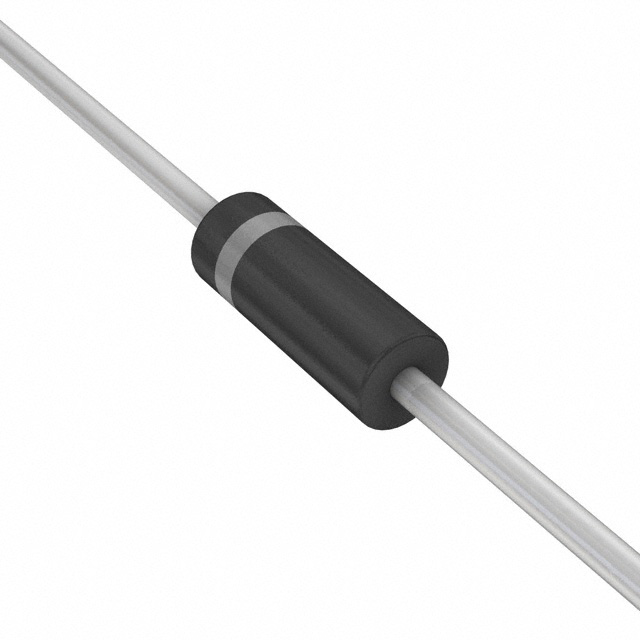

5瓦Surmetic TM 40齐纳稳压器 5 Watt Surmetic TM 40 Zener Voltage Regulators
- 齐纳 ±5% 通孔 轴向
立创商城:
1N5336BRLG
得捷:
DIODE ZENER 4.3V 5W AXIAL
贸泽:
稳压二极管 4.3V 5W
艾睿:
Need to operate a diode in the reverse-breakdown region? No worries, use a voltage regulator 1N5336BRLG zener diode from ON Semiconductor. Its test current is 290 mA. Its maximum leakage current is 10 μA. This device has a maximum regulator current of 1100 mA. Its maximum power dissipation is 5000 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This zener device has a nominal voltage of 4.3 V and a voltage tolerance of 5%. It is made in a single configuration. This zener diode has a minimum operating temperature of -65 °C and a maximum of 200 °C.
安富利:
Diode Zener Single 4.3V 5% 5W 2-Pin Case 017AA-01 T/R
Chip1Stop:
Diode Zener Single 4.3V 5% 5W 2-Pin Case 017AA-01 T/R
Verical:
Zener Diode Single 4.3V 5% 2Ohm 5000mW 2-Pin Case 017AA-01 T/R
Newark:
# ON SEMICONDUCTOR 1N5336BRLG Zener Single Diode, 4.3 V, 5 W, 017AA, 5 %, 2 Pins, 200 °C
罗切斯特:
Diode Zener Single 4.3V 5% 5W 2-Pin Case 017AA-01 T/R
Win Source:
DIODE ZENER 4.3V 5W AXIAL
额定电压DC 4.30 V
容差 ±5 %
额定功率 5.00 W
无卤素状态 Halogen Free
针脚数 2
正向电压 1.2V @1A
耗散功率 5 W
测试电流 290 mA
稳压值 4.3 V
正向电压Max 1.2V @1A
额定功率Max 5 W
工作温度Max 200 ℃
工作温度Min -65 ℃
耗散功率Max 5000 mW
安装方式 Through Hole
引脚数 2
封装 017AA-01
长度 8.89 mm
封装 017AA-01
工作温度 -65℃ ~ 200℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1N5336BRLG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
1N5336BRL 安森美 | 完全替代 | 1N5336BRLG和1N5336BRL的区别 |
1N5336B 安森美 | 完全替代 | 1N5336BRLG和1N5336B的区别 |
1N5336BG 安森美 | 类似代替 | 1N5336BRLG和1N5336BG的区别 |
