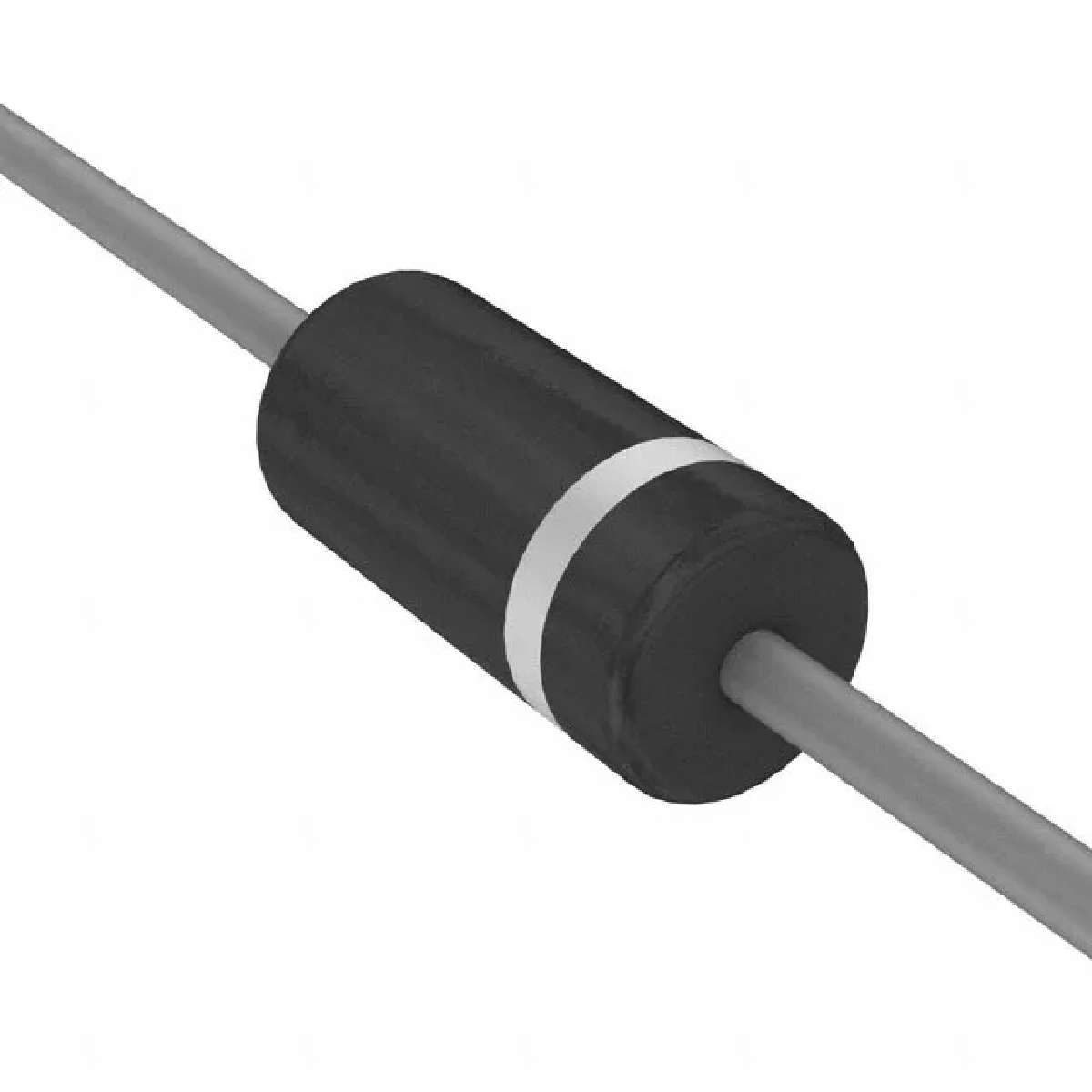

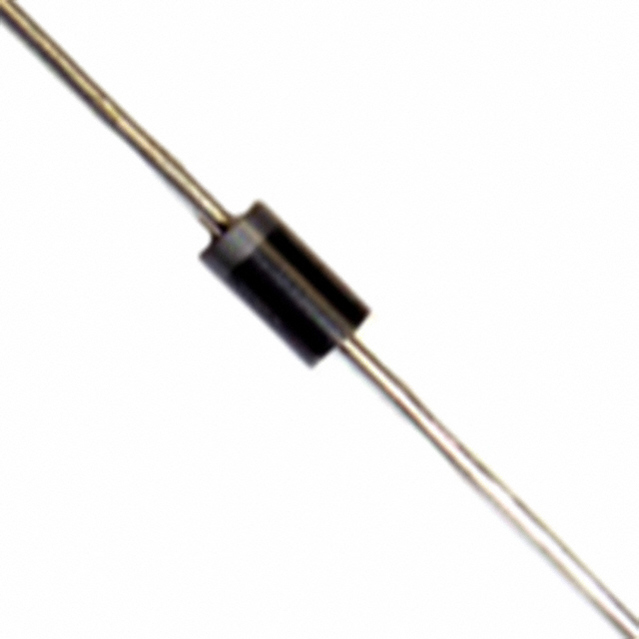

1N5363 系列 5 W 30 V 1 A 齐纳二极管- DO-15
- 齐纳 30 V 5 W ±5% 通孔 DO-15
得捷:
DIODE ZENER 30V 5W DO15
立创商城:
30V ±5% 5W
贸泽:
Zener Diodes 5.0W 30V
艾睿:
This 1N5363B-TP zener diode from Micro Commercial Components is perfect for blocking a voltage. Its maximum power dissipation is 5000 mW. Its maximum leakage current is 0.5 μA. This device has a maximum regulator current of 158 mA. Its test current is 40 mA. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This zener device has a nominal voltage of 30 V and a voltage tolerance of 5%. This zener diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. It is made in a single configuration.
额定电压DC 30.0 V
容差 ±5 %
额定功率 5.00 W
正向电压 1.2V @1A
耗散功率 5 W
测试电流 40 mA
稳压值 30 V
正向电压Max 1.2V @1A
额定功率Max 5 W
工作温度Max 150 ℃
工作温度Min 55 ℃
安装方式 Through Hole
引脚数 2
封装 DO-15-2

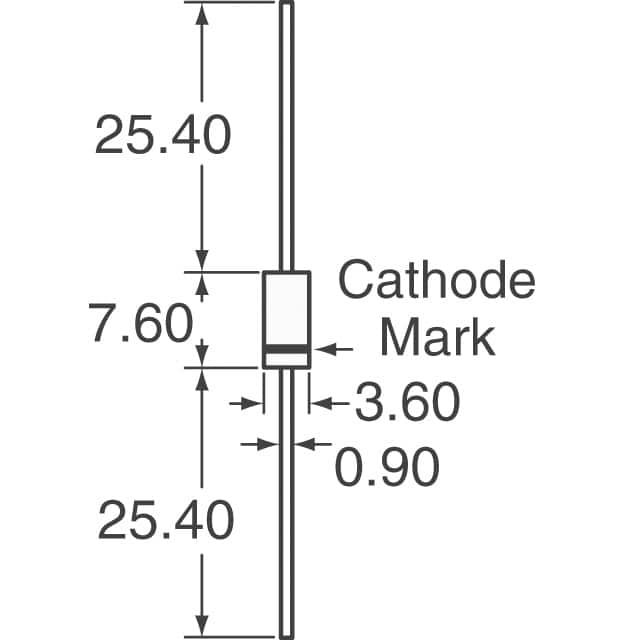

长度 7.6 mm
宽度 3.6 mm
高度 3.6 mm
封装 DO-15-2
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1N5363B-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
1N5363BRL 安森美 | 类似代替 | 1N5363B-TP和1N5363BRL的区别 |
1N5363BRLG 安森美 | 功能相似 | 1N5363B-TP和1N5363BRLG的区别 |
