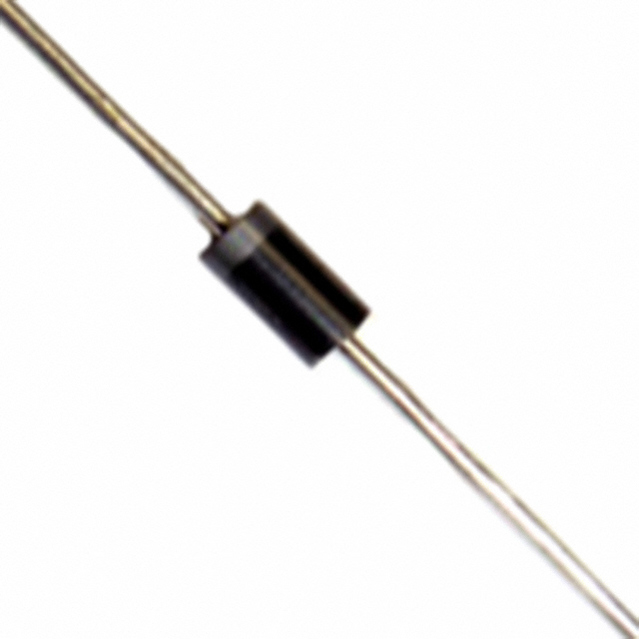

1N5355B 系列 5 W 18 V 通孔 齐纳 二极管 - DO-15
- 齐纳 18 V 5 W ±5% 通孔 DO-15
得捷:
DIODE ZENER 18V 5W DO15
立创商城:
18V 5W
贸泽:
Zener Diodes 5.0W 18V
艾睿:
This 1N5355B-TP zener diode from Micro Commercial Components will allow you to run it in the reverse direction. This device has a maximum regulator current of 264 mA. Its maximum power dissipation is 5000 mW. Its test current is 65 mA. Its maximum leakage current is 0.5 μA. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It is made in a single configuration. This zener device has a nominal voltage of 18 V and a voltage tolerance of 5%. This zener diode has a minimum operating temperature of -55 °C and a maximum of 150 °C.
Chip1Stop:
Diode Zener Single 18V 5% 5W 2-Pin DO-15 T/R
Win Source:
DIODE ZENER 18V 5W DO15
额定电压DC 18.0 V
容差 ±5 %
额定功率 5.00 W
正向电压 1.2 V
耗散功率 5 W
测试电流 65 mA
稳压值 18 V
正向电压Max 1.2V @1A
额定功率Max 5 W
工作温度Max 150 ℃
工作温度Min 55 ℃
耗散功率Max 5 W
安装方式 Through Hole
引脚数 2

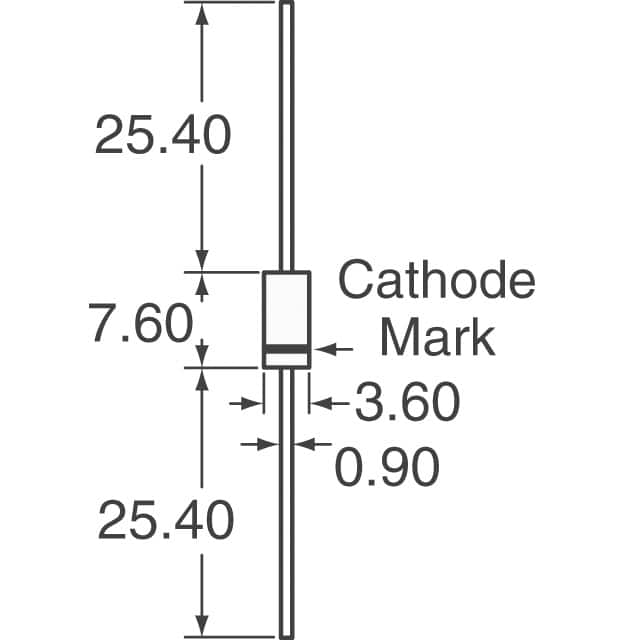

封装 DO-15-2
长度 7.6 mm
宽度 3.6 mm
高度 3.6 mm
封装 DO-15-2
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1N5355B-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
CZ5355B Central Semiconductor | 功能相似 | 1N5355B-TP和CZ5355B的区别 |
1N5355B-T 美微科 | 功能相似 | 1N5355B-TP和1N5355B-T的区别 |
1N5355B-AP 美微科 | 功能相似 | 1N5355B-TP和1N5355B-AP的区别 |
