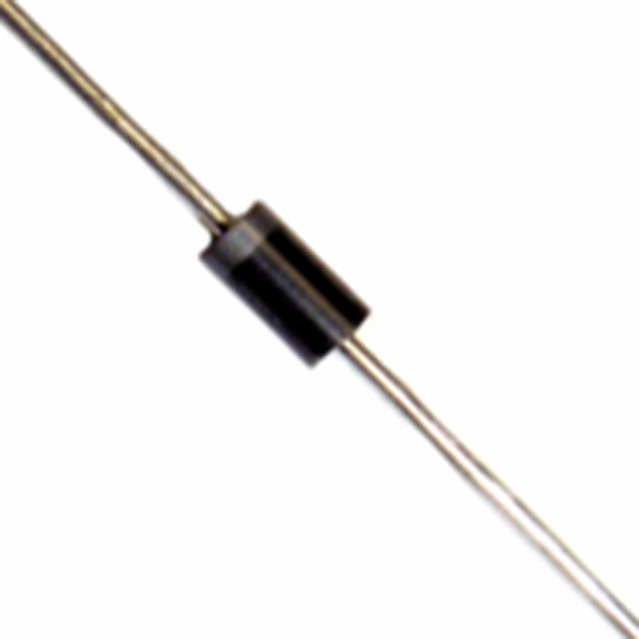

DO-15 39V 5W
- 齐纳 39 V 5 W ±5% 通孔 DO-15
得捷:
DIODE ZENER 39V 5W DO15
立创商城:
1N5366B-TP
贸泽:
Zener Diodes 5.0W 39V
艾睿:
If your circuit requires a diode to operate in the reverse breakdown region, then this 1N5366B-TP zener diode from Micro Commercial Components is exactly what you need. Its maximum leakage current is 0.5 μA. This device has a maximum regulator current of 122 mA. Its test current is 30 mA. Its maximum power dissipation is 5000 mW. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This zener diode has an operating temperature range of -55 °C to 150 °C. It is made in a single configuration. This zener device has a nominal voltage of 39 V and a voltage tolerance of 5%.
额定电压DC 39.0 V
容差 ±5 %
额定功率 5.00 W
正向电压 1.2V @1A
耗散功率 5 W
测试电流 30 mA
稳压值 39 V
正向电压Max 1.2V @1A
额定功率Max 5 W
工作温度Max 150 ℃
工作温度Min 55 ℃
安装方式 Through Hole
引脚数 2

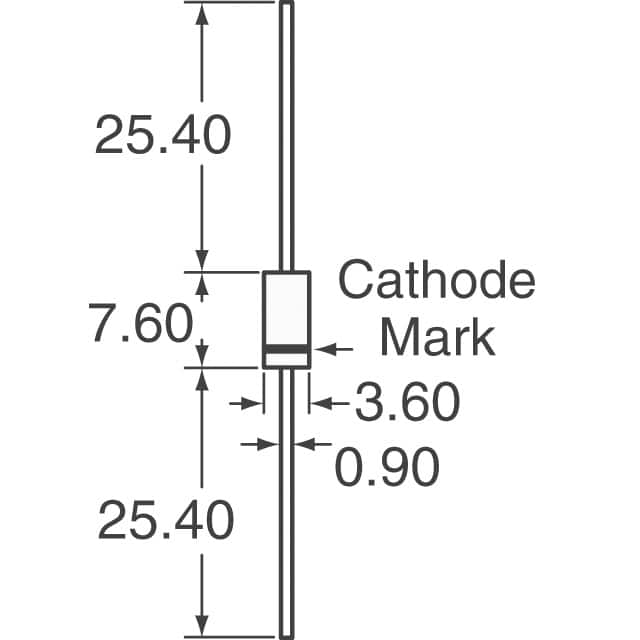

封装 DO-15-2
长度 7.6 mm
宽度 3.6 mm
高度 3.6 mm
封装 DO-15-2
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1N5366B-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
1N4754A-TP 美微科 | 类似代替 | 1N5366B-TP和1N4754A-TP的区别 |
1N5366BG 安森美 | 功能相似 | 1N5366B-TP和1N5366BG的区别 |
1N5366BRLG 安森美 | 功能相似 | 1N5366B-TP和1N5366BRLG的区别 |
