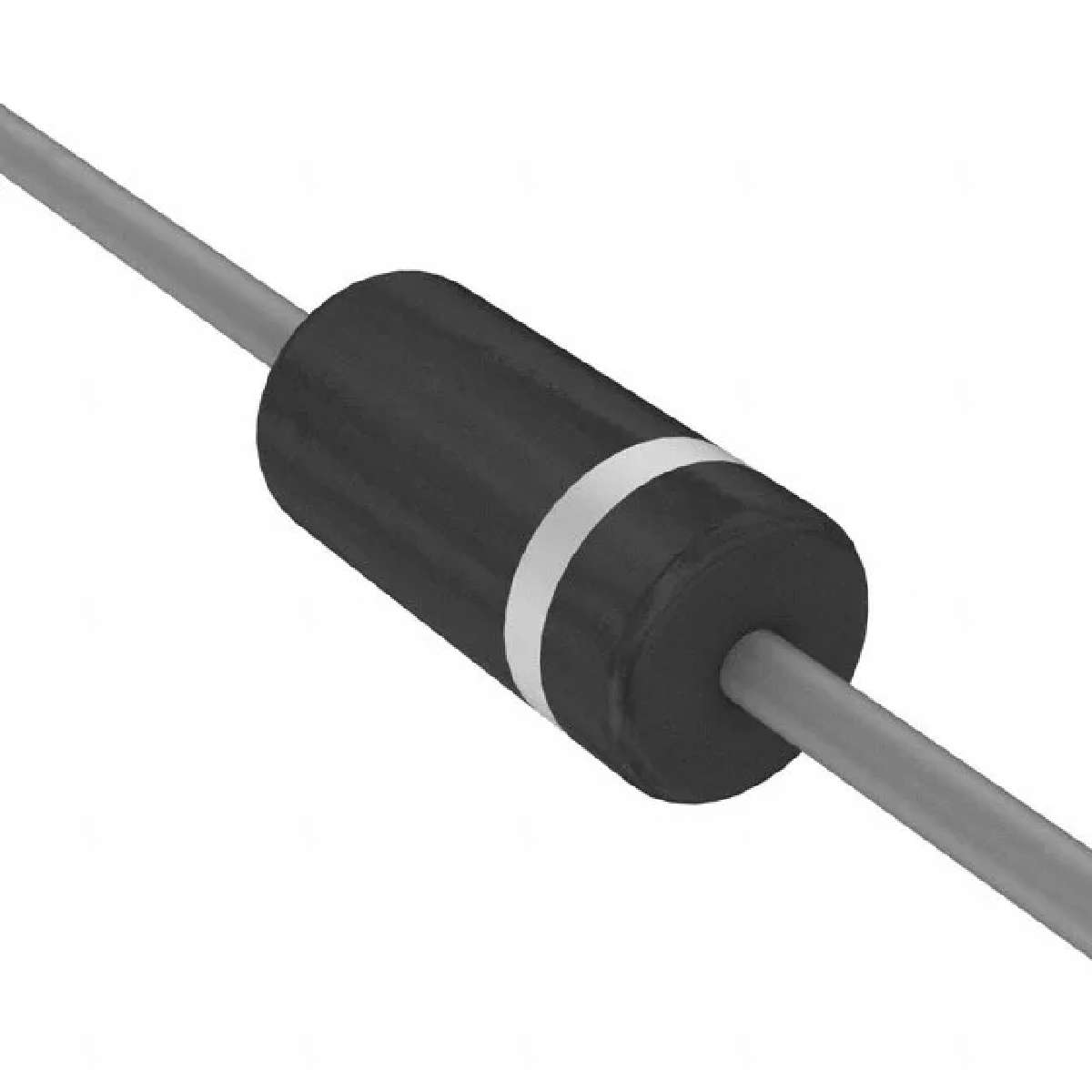

1N4383GPHE3/54

Diode Switching 200V 1A Automotive 2Pin DO-15 T/R

Reverse Voltage 200 to 1000V

Forward Current 1.0A

Features

• Plastic package has Underwriters Laboratories

  Flammability Classification 94V-0

• High temperature metallurgically bonded construction

• Cavity-free glass passivated junction

• Capable of meeting environmental standards of MIL-S-19500

• 1.0 Ampere operation at TA = 100°C with no thermal runaway

• High temperature soldering guaranteed: 350°C/10 seconds, 0.375" 9.5mm lead length, 5 lbs. 2.3kg tension

Mechanical Data

Case: JEDEC DO-204AC, molded plastic over glass body

Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026

Polarity: Color band denotes cathode end

Mounting Position: Any

Weight: 0.015oz., 0.4g
