Zener Diodes, ON Semiconductor
齐纳 3.2W,1PMT59xxB 系列,On Semiconductor
表面安装 POWERMITE® 封装
### Zener Diodes,
得捷:
DIODE ZENER 22V 3.2W POWERMITE
立创商城:
1PMT5933BT1G
欧时:
### 齐纳二极管 3.2W,1PMT59xxB 系列,On Semiconductor表面安装 POWERMITE® 封装 ### Zener Diodes, ON Semiconductor
艾睿:
When your circuit requires a diode to act in the reverse-breakdown region use a voltage regulator 1PMT5933BT1G zener diode from ON Semiconductor. Its maximum leakage current is 1 μA. Its test current is 17 mA. Its maximum power dissipation is 3200 mW. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It is made in a single configuration. This zener device has a nominal voltage of 22 V and a voltage tolerance of 5%. This zener diode has an operating temperature range of -55 °C to 150 °C.
Allied Electronics:

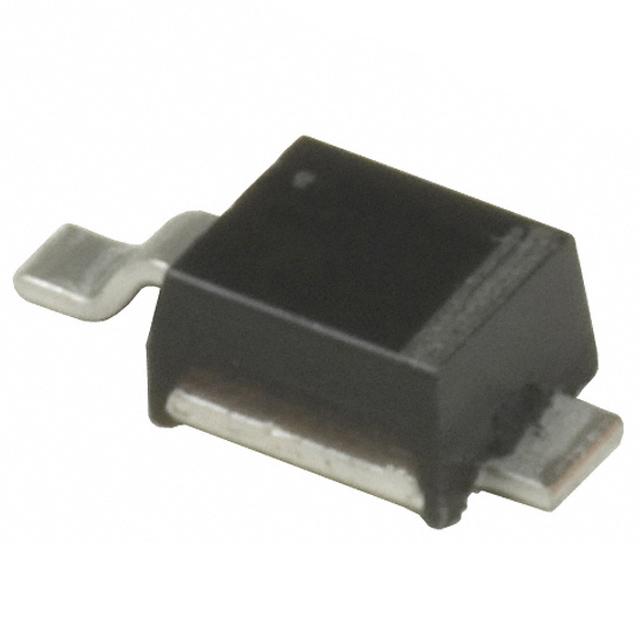

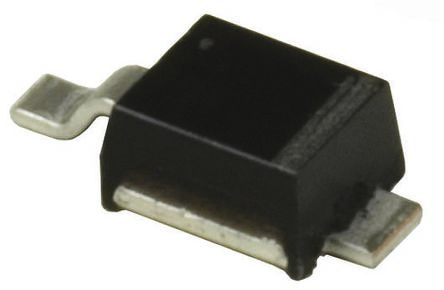

1PMT5933BT1G Zener Diode, 22V 3.2 W SMT2-Pin Case 457-04
安富利:
Diode Zener Single 22V 5% 500mW 2-Pin1+Tab Power Mite T/R
Chip1Stop:
Diode Zener Single 22V 5% 500mW 2-Pin1+Tab Power Mite T/R
Verical:
Zener Diode Single 22V 5% 17.5Ohm 3200mW 2-Pin1+Tab Power Mite T/R
额定电压DC 6.20 V
容差 ±5 %
额定功率 3.20 W
无卤素状态 Halogen Free
击穿电压 6.20 V
正向电压 1.25V @200mA
耗散功率 500 mW
测试电流 17 mA
稳压值 22 V
额定功率Max 3.2 W
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 500 mW
安装方式 Surface Mount
引脚数 2
封装 DO-216AA
长度 2.18 mm
宽度 2.05 mm
高度 1.15 mm
封装 DO-216AA
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1PMT5933BT1G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
1PMT5933BT1 安森美 | 功能相似 | 1PMT5933BT1G和1PMT5933BT1的区别 |
1PMT5933BT3 摩托罗拉 | 功能相似 | 1PMT5933BT1G和1PMT5933BT3的区别 |
