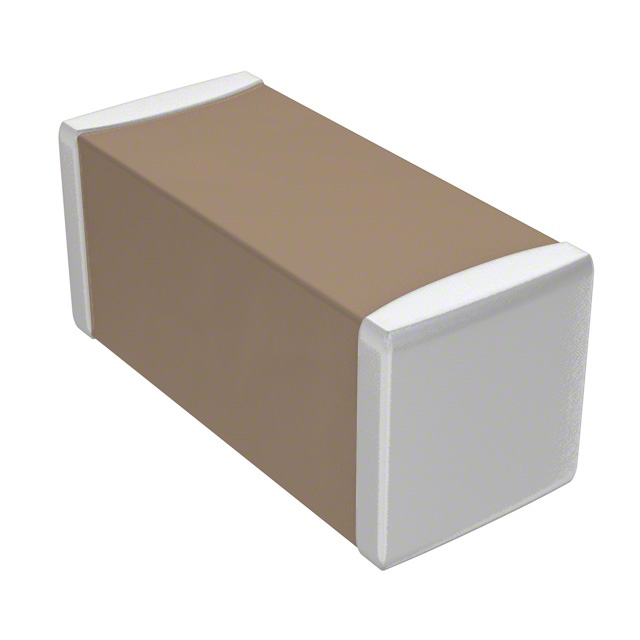

AVX 1808GC102KAT1A 多层陶瓷电容器, 表面贴装, 高电压, 1000 pF, ± 10%, X7R, 2 kV, 1808 [4520 公制]
MLCC-多层陶瓷器
得捷:
CAP CER 1000PF 2KV X7R 1808
欧时:
### AVX 1808 系列AVX C0G 电介质陶瓷电容器是温度补偿的最常见配方,为 EIA I 类陶瓷材料。 C0G 陶瓷提供最稳定的电容器电介质。 温度为 0 ±30ppm/°C 时,电容变化低于 ±0.3%,从 -55°C 到 +125°C。 电容偏移或滞后,用于 C0G 陶瓷,在低于 ±0.05% 时可忽略。 ### 1808 系列
e络盟:
多层陶瓷电容器, 表面贴装, 高电压, 1000 pF, 2 kV, 1808 [4520 公制], ± 10%, X7R, AVX High Voltage MLCC
艾睿:
Cap Ceramic 0.001uF 2000V X7R 10% Pad SMD 1808 125°C Low ESR T/R
Allied Electronics:
1808 Standard 1nF Ceramic Multilayer Cap, 2000VDC, +125C, X7R Dielectric, +/-10% SMD
Jameco:
Capacitor 0.001 uF 2000 Volt X7R 10% Surface Mount 1808 Tape and Reel
安富利:
X7R formulations are called “temperature stable” ceramics and fall into EIA Class II materials. X7R is the most popular of these intermediate dielectric constant materials. Its temperature variation of capacitance is within ±15% from -55°C to +125°C. This capacitance change is non-linear.Capacitance for X7R varies under the influence of electrical operating conditions such as voltage and frequency.X7R dielectric chip usage covers the broad spectrum of industrial applications where known changes in capacitance due to applied voltages are acceptable.
Chip1Stop:
Cap Ceramic 0.001uF 2000V X7R 10% SMD 1808 125ÂÂ℃ T/R
Verical:
Cap Ceramic 0.001uF 2000V X7R 10% Pad SMD 1808 125C Low ESR T/R
Newark:
# AVX 1808GC102KAT1A SMD Multilayer Ceramic Capacitor, High Voltage, 1808 [4520 Metric], 1000 pF, 2 kV, ± 10%, X7R
儒卓力:
**KC 1,0nF 1808 10% 2000V X7R **
Win Source:
1000pF 2000V 2kV Ceramic Capacitor X7R 1808 4520 Metric 0.180" L x 0.080" W 4.57mm x 2.03mm
额定电压DC 2000 V
绝缘电阻 10 GΩ
电容 1000 pF
容差 ±10 %
电介质特性 X7R
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 2 kV
安装方式 Surface Mount
引脚数 2
封装公制 4520
封装 1808
长度 4.57 mm
宽度 2.03 mm
高度 2.03 mm
封装公制 4520
封装 1808
材质 X7R/-55℃~+125℃
介质材料 Ceramic
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
制造应用 工业, 转换器, Industrial, 通用, 电源管理, SMPS 中的共振器, Power Management, 高电压耦合/直流阻隔
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1808GC102KAT1A AVX 艾维克斯 | 当前型号 | 当前型号 |
1808GC102KAT3A 艾维克斯 | 类似代替 | 1808GC102KAT1A和1808GC102KAT3A的区别 |
C4520X7R3D102K130KA 东电化 | 功能相似 | 1808GC102KAT1A和C4520X7R3D102K130KA的区别 |
C1808C102KGRACTU 基美 | 功能相似 | 1808GC102KAT1A和C1808C102KGRACTU的区别 |
