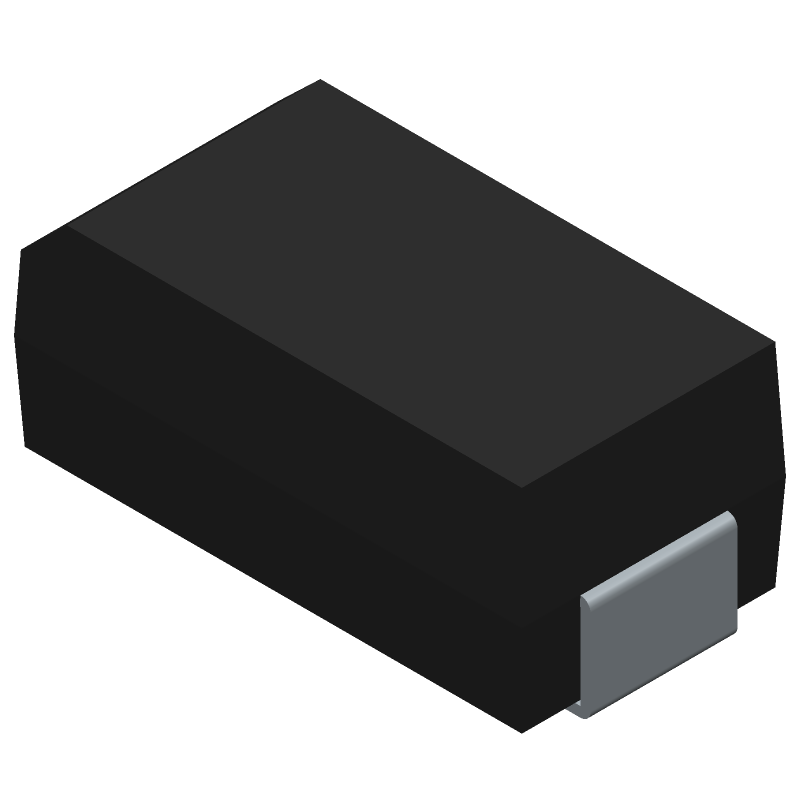

1SMA24CAT3G

400W 齐纳瞬态电压抑制器（双向）### 瞬态电压抑制器，On Semiconductor

400 Watt Peak Power Zener Transient Voltage Suppressors

.

The SMA series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. The SMA series is supplied in ’s exclusive, cost-effective, highly reliable Surmetic™ package and is ideally suited for use in communication systems, automotive, numerical controls, process controls, medical equipment, business machines, power supplies and many other industrial/consumer applications.

Features

• Working Peak Reverse Voltage Range − 10 V to 78 V

• Standard Zener Breakdown Voltage Range − 11.7 V to 91.3 V

• Peak Power − 400 Watts @ 1 ms

• ESD Rating of Class 3 > 16 kV per Human Body Model

• Response Time is Typically < 1 ns

• Flat Handling Surface for Accurate Placement

• Package Design for Top Slide or Bottom Circuit Board Mounting

• Low Profile Package

• Pb−Free Packages are Available
